Accessories 2 - 25
•
Provides serial connection through the serial pass-through port for communication with a serial device, such
as a host computer. For communication setup procedures, see Serial Communication Setup on page 2-34.
•
Provides USB connection through the USB pass-through port for communication with a USB device, such as
a host computer. For communication setup procedures, see Serial Communication Setup on page 2-34.
•
Charges the MC9190-G’s battery, when used with the appropriate power supply.
Attaching and Removing
To attach, snap the CAM onto the bottom of the MC9190-G.

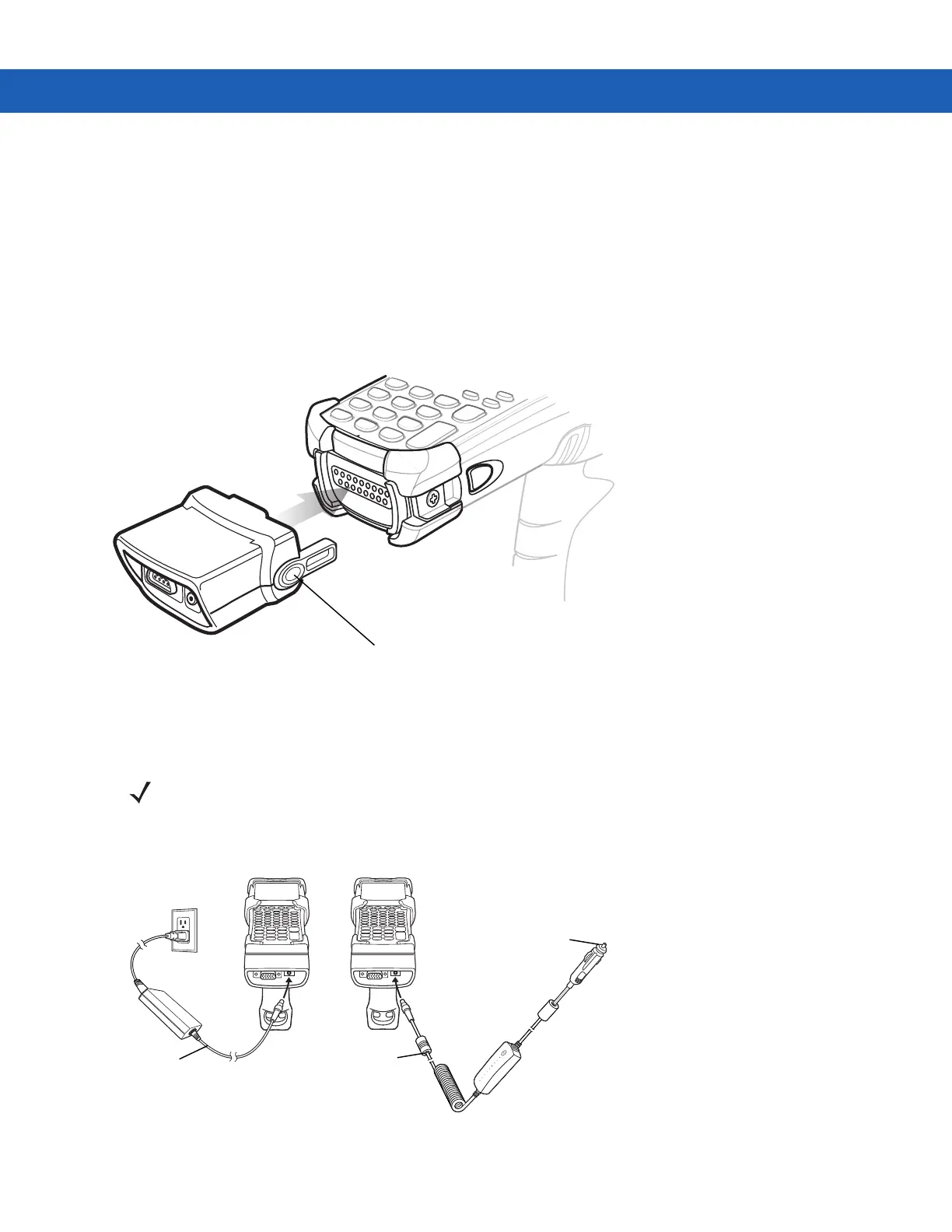

Figure 2-23
Attaching the CAM
To remove, squeeze the latch grips and pull the CAM from the MC9190-G.
Setup
Figure 2-24
CAM Power Connection
Latch Grip
(one on each side)
NOTE Remove the CAM from the bottom of the MC9190-G before using a cradle for charging and
communication.
OR
Vehicle Power
Supply
AC Power
Supply
Into Cigarette
Lighter
To Next Page
