Accessories 2 - 11
Setup

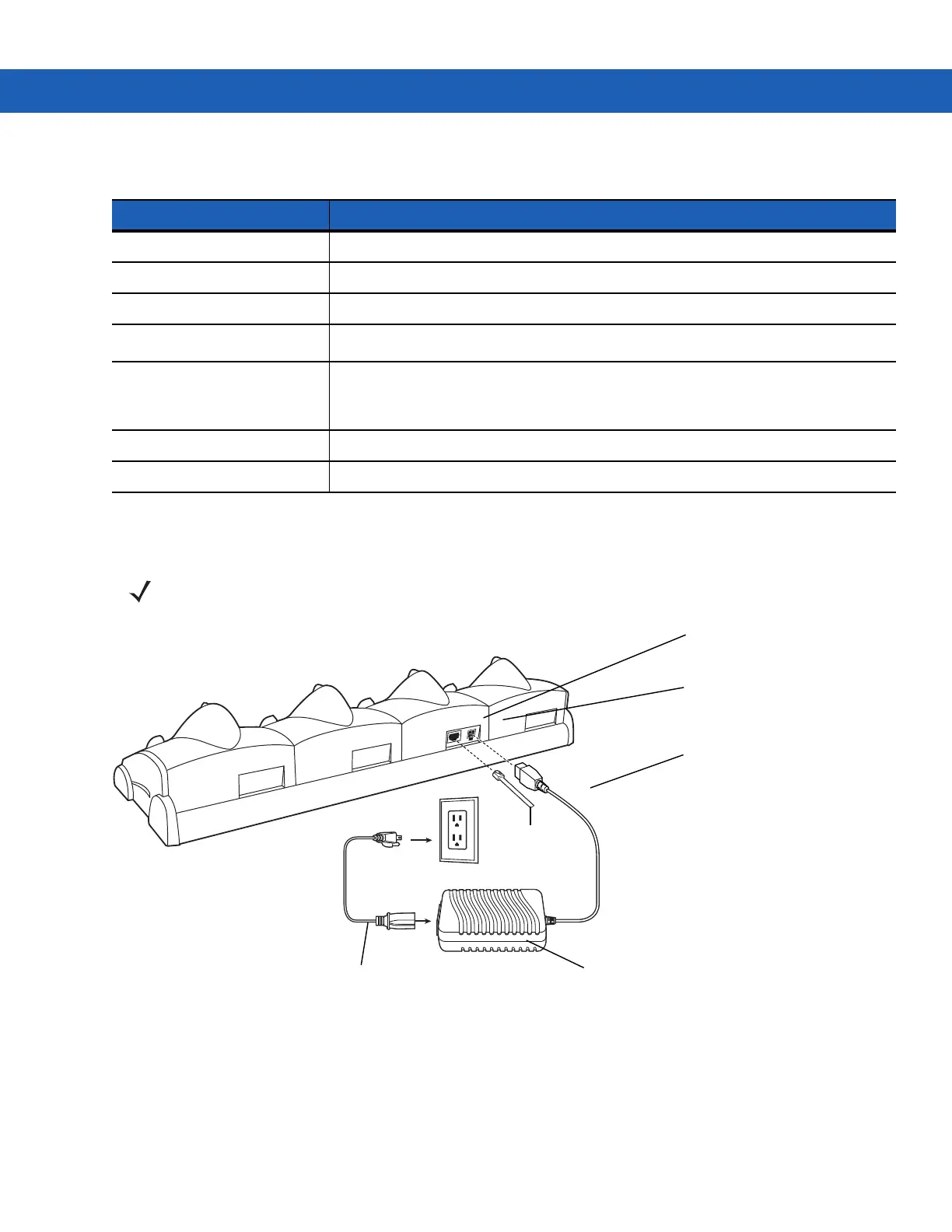

Figure 2-8
Four Slot Ethernet Cradle Power Connection
Battery Charging Indicators
The MC9190-G’s amber charge LED, located in the Indicator LED Bar, shows the status of the battery charging in
the MC9190-G. See Table 2-2 for charging status indications. The battery usually charges in less than four hours.
Table 2-4
Communication LED
Status Indication
Off MC9190-G is not in cradle; MC9190-G not placed correctly; cradle is not powered.
Solid Red MC9190-G is present, but communication has not started.
Flashing Green MC9190-G is in the cradle, and communicating with the host computer.
Slow Flashing Red
Error, communication did not start.
Fast Flashing Red Warning: Terminal inactivity time-out. The terminal did not finish data
synchronization or had an open connection for more than 15 minutes. This time is
programmable in the cradle flash parameters.
Solid Green Terminal is present in the slot and communication is complete.
All LEDs Flashing Red Failed automatic cradle configuration via local DHCP Service.
NOTE The Four Slot Ethernet cradle must be connected to a power source and to an Ethernet Hub (when
applicable).
AC Line Cord
Power Supply
DC Cable
To Ethernet
Hub
Power Port
Ethernet
Communication Port
