2 - 40 MC9190-G Integrator Guide

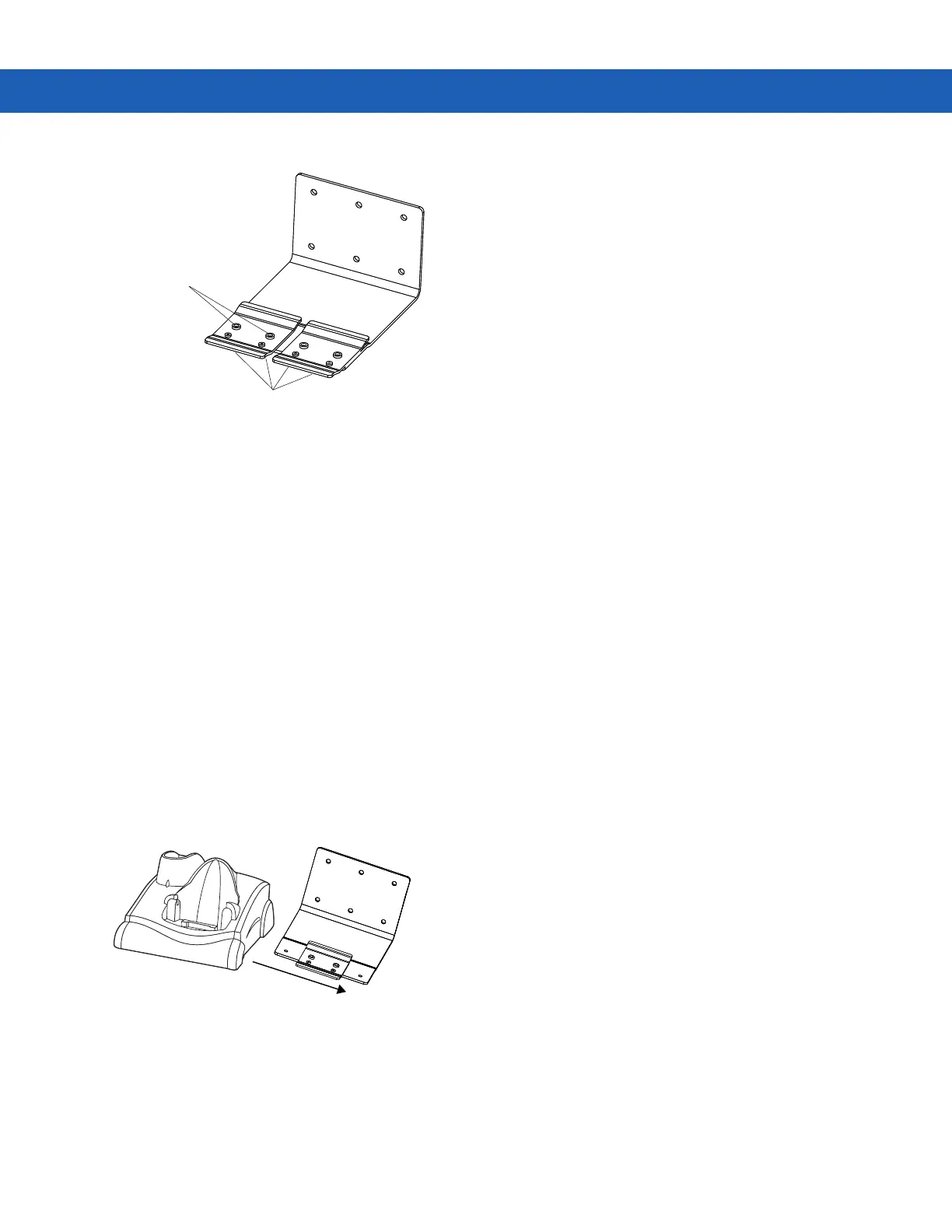

Figure 2-42 Attaching Two Shelf Slides
Four Slot Cradle
To attach the shelf slide to the wall mount bracket for use with a four slot cradle:
1. Place a slide on the left-hand bracket, aligning the larger pan-head screw holes in the slide with the left two
screw holes on the bracket.
2. Secure the slide to the bracket by inserting the two pan-head screws provided from below the bracket, up
through the bracket’s screw holes and then through the slide’s pan-head screw holes.
3. Place a slide on the right-hand bracket, aligning the larger pan-head screw holes in the slide with the right two
screw holes on the bracket.
4. Secure the second slide to the bracket as described in Step 2.
Installing the Cradle/Charger on the Bracket
Install the cradle or charger onto the bracket, inserting the bracket’s slide into the grooves on the bottom of the
cradle/charger and sliding the cradle/charger into the desired position.
For one single slot cradle/four slot charger, center it on the bracket.
Figure 2-43 Attaching Two Shelf Slides
For two single slot cradle/four slot chargers, slide one onto the left-hand slide, and one onto the right-hand slide.
Insert screws from below
Pan-head
screw holes
Slide grooves on bottom of
cradle/charger over bracket slide
