Accessories 2 - 39

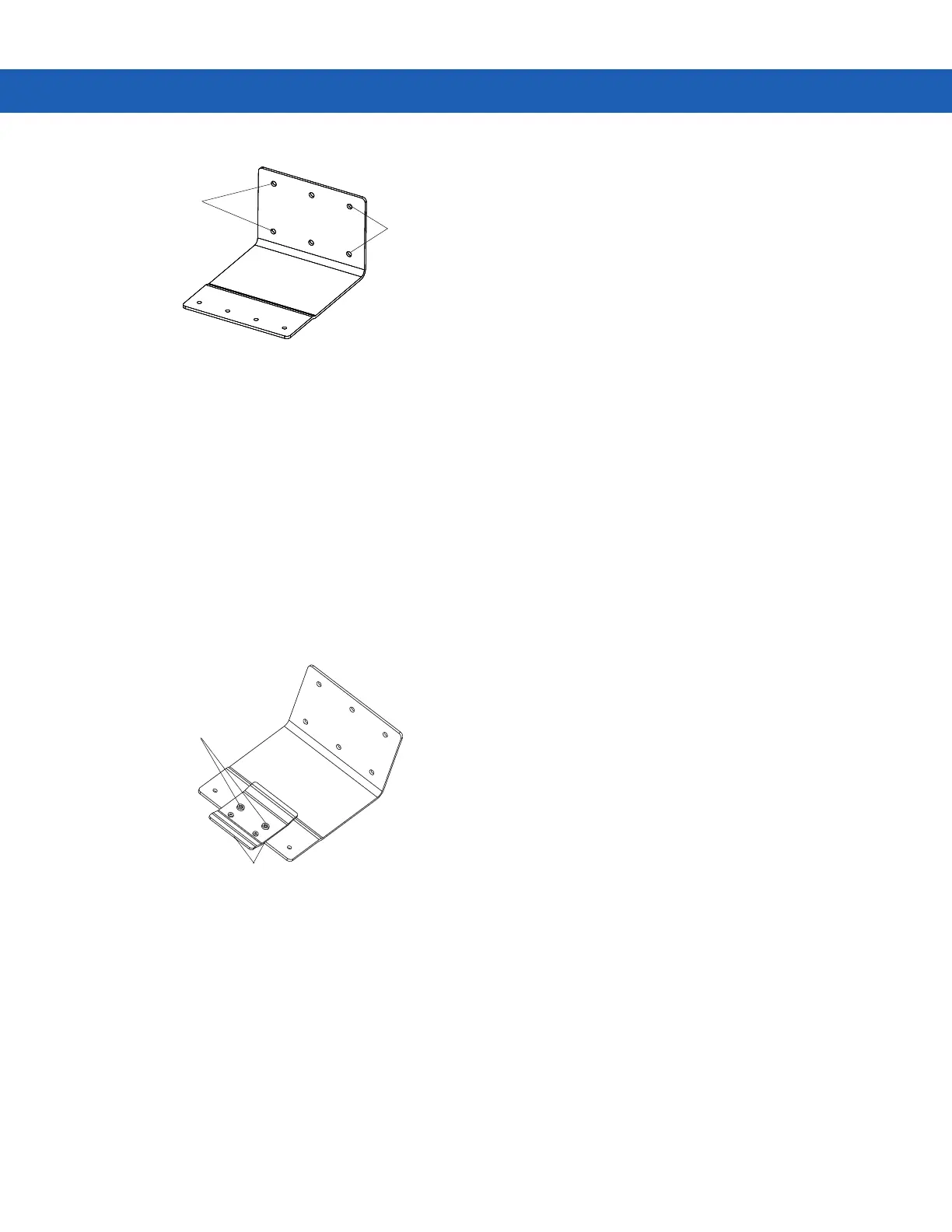

Figure 2-40
Wall Mounting Bracket Mounting Screws
If using the bracket and slide with a four slot cradle, secure a second bracket to the wall next to the first, aligning
the horizontal screw holes on the second with those of the first.
Attaching the Shelf Slide to the Wall Mount Bracket
One Single Slot Cradle/Four Slot Battery Charger
To attach the shelf slide to the wall mount bracket for use with one single slot cradle or four slot battery charger:
1. Place the slide on the bracket, aligning the larger pan-head screw holes in the slide with the center two screw
holes on the bracket.
2. Secure the slide to the bracket by inserting the two pan-head screws provided from below the bracket, up
through the bracket’s screw holes and then through the slide’s pan-head screw holes.
Figure 2-41
Attaching One Shelf Slide
Two Single Slot Cradles/Four Slot Battery Chargers
To attach the shelf slide to the wall mount bracket for use with two single slot cradles or two four slot battery
chargers:
1. Place the slide on the bracket, aligning the larger pan-head screw holes in the slide with the left or right two
screw holes on the bracket.
2. Secure the slide to the bracket by inserting the two pan-head screws provided from below the bracket, up
through the bracket’s screw holes and then through the slide’s pan-head screw holes.
3. Secure a second slide to the remaining two screw holes on the bracket in the same manner.
Insert screws
Insert screws
Insert screws from below
Pan-head Screw Holes
To Next Page
