Motorola MC9190-G Integrator Guide

Accessories 2 - 21
Magnetic Stripe Reader
This section describes how to set up and use the snap-on MSR with the MC9190-G. The MSR snaps on to the
bottom of the MC9190-G and can be easily removed when not in use.

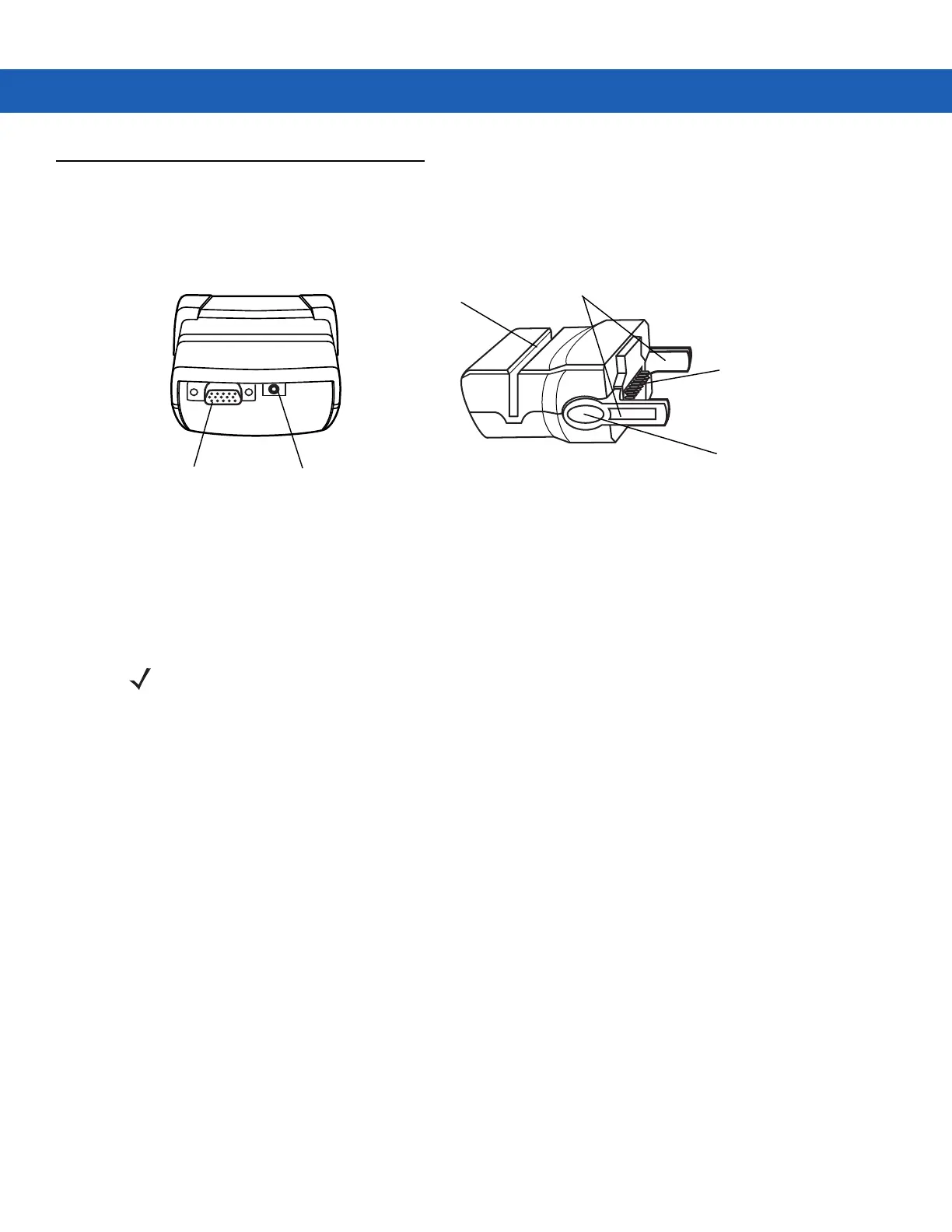

Figure 2-17 Magnetic Stripe Reader
When attached to the MC9190-G, the MSR:
• Provides power for operating the MC9190-G, with the appropriate power connection.
• Allows the MC9190-G to capture data from magnetic stripe cards. (To download MSR data capture software,
visit: http://www.supportcentral.motorola.com ).
• Provides serial connection through the serial pass-through port for communication with a serial device, such
as a host computer. For communication setup procedures, see Serial Communication Setup on page 2-34.
• Provides USB connection through the USB pass-through port for communication with a USB device, such as
a host computer. For communication setup procedures, see Serial Communication Setup on page 2-34.
• Charges the MC9190-G’s battery, when used with the appropriate power supply.
Card Reader Slot
Latches
Power Port
Communications Port
Pogo Pin
Pass-through
Connector
Latch Grip
NOTE When a MC9190-G with Windows Mobile 6.5 is connected to a host computer through the MSR and an
ActiveSync connection is made, the WLAN and WWAN radios (if applicable) are disabled. This is a
Microsoft security feature to prevent connection to two networks at the same time.
