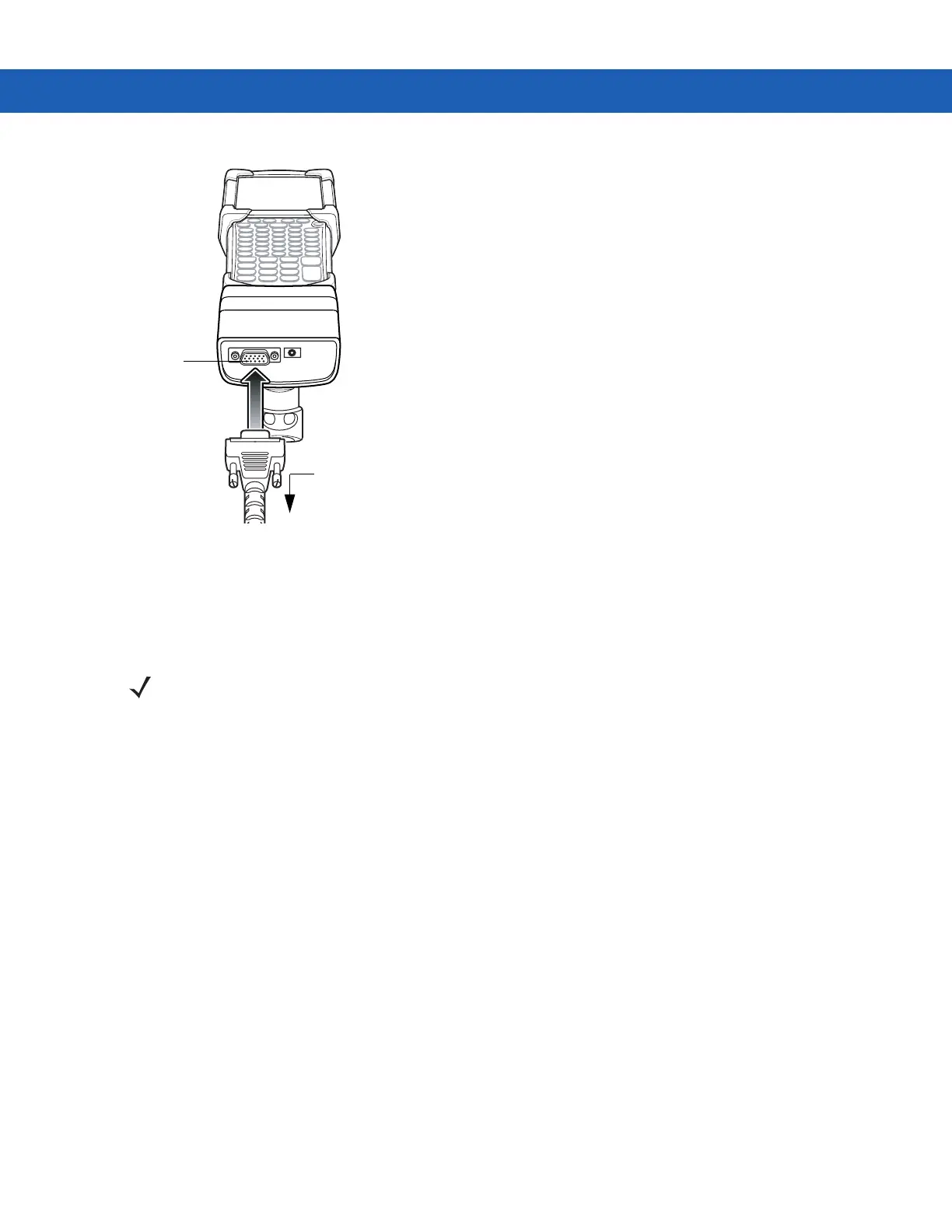

Figure 2-25 CAM Serial Connection
Battery Charging Indicators
To charge the MC9190-G’s battery through the CAM, connect the power supply to the CAM (see Figure 2-24 on
page 2-25), then attach the CAM to the MC9190-G. The MC9190-G begins charging automatically.
The MC9190-G’s amber charge LED, located in the Indicator LED Bar, shows the status of the battery charging in
the MC9190-G. See Table 2-2 on page 2-9 for charging status indications. The battery usually charges in less than
four hours, if the MC9190-G is not in use.
Serial/USB Connection
The CAM can connect to and communicate with a serial/USB device, such as a printer or host computer, through
its serial port. See Serial Communication Setup on page 2-34 for the host computer communication setup
procedure.
To connect the CAM to a serial/USB device, connect one end of the serial device cable into the serial port on the
CAM and the other end into the serial/USB port on the device.
Serial Port
To Device
Serial/USB
Port
NOTE Batteries must be charged within the 32° to 104° F (0° to +40° C) ambient temperature range.
