Accessories 2 - 31

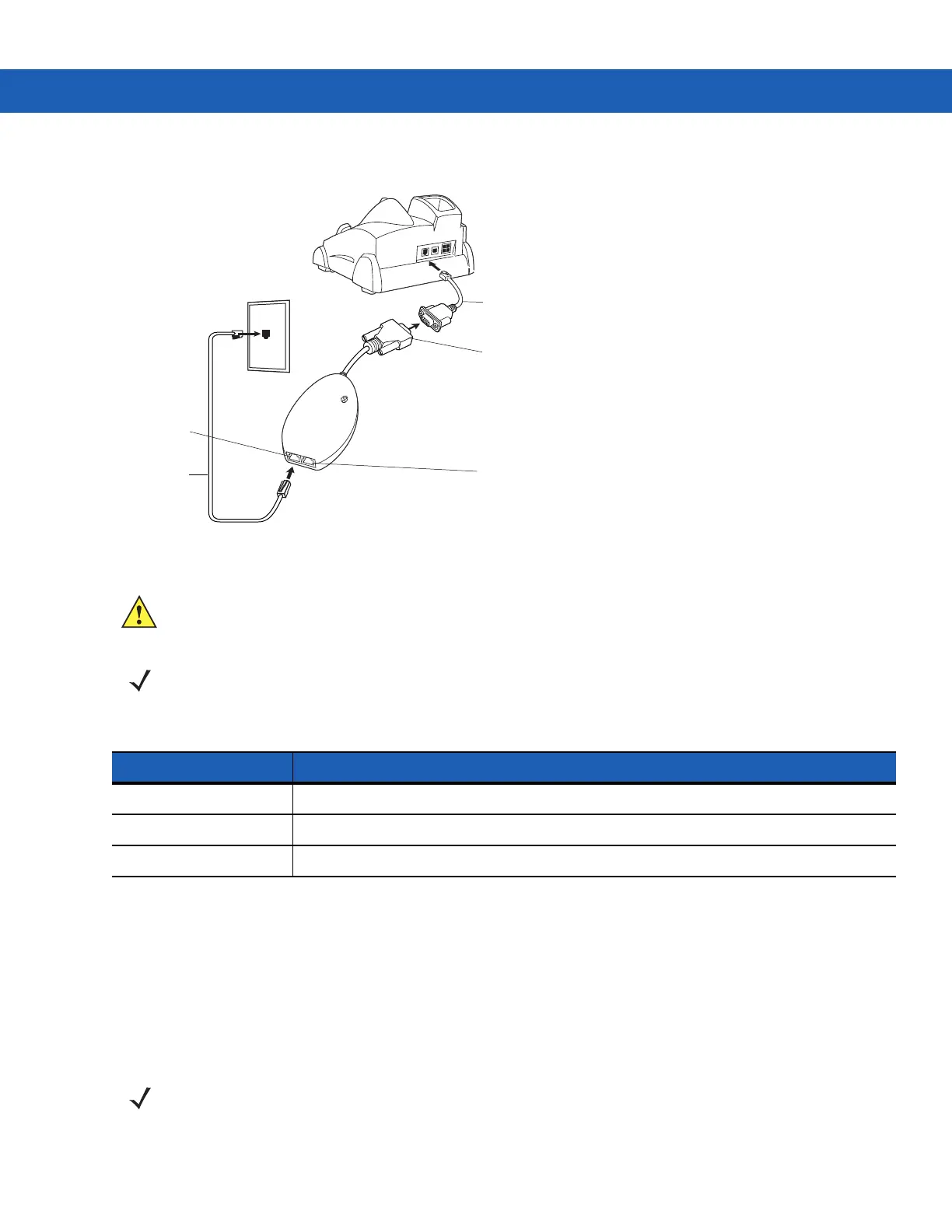

Connecting to the Single Slot Serial/USB Cradle
Figure 2-31
Modem Module Connection - Single Slot Serial/USB Cradle
Configuring the MC9190-G for the Modem (Windows Mobile 6.5)
To create a new modem connection on the MC9190-G:
1. Connect the modem to the MC9190-G as described in Connecting to the MC9190-G on page 2-30.
2. Tap Start > Settings > Connections > Connections.
3. In the Task tab, select Add a new modem connection to create a connection.
4. Enter a name for the connection. In the drop-down menu, select Hayes Compatible on COM1, then tap Next.
Adapter cable
Phone cord
Male 15-pin connector
Line In port
Phone port
CAUTION Do not connect the modem's 15-pin connector into a VGA port of a host computer.
NOTE If using a phone, connect the cord from the phone to the Phone port on the modem.
Table 2-10
Modem Indicators
LED Indication
Off Modem is not properly connected to the MC9190-G; modem is not receiving power.
Green Modem is connected to the MC9190-G and is receiving power.
Solid Amber MC9190-G is communicating with the host computer.
NOTE Depending on the location when dialing, additional numbers may need to be dialed (e.g., a 9 prefix is often
required if dialing from work; a country code is needed if dialing internationally). To avoid creating new
modem connections for each situation, tap use dialing rules to define frequently used dialing locations.
