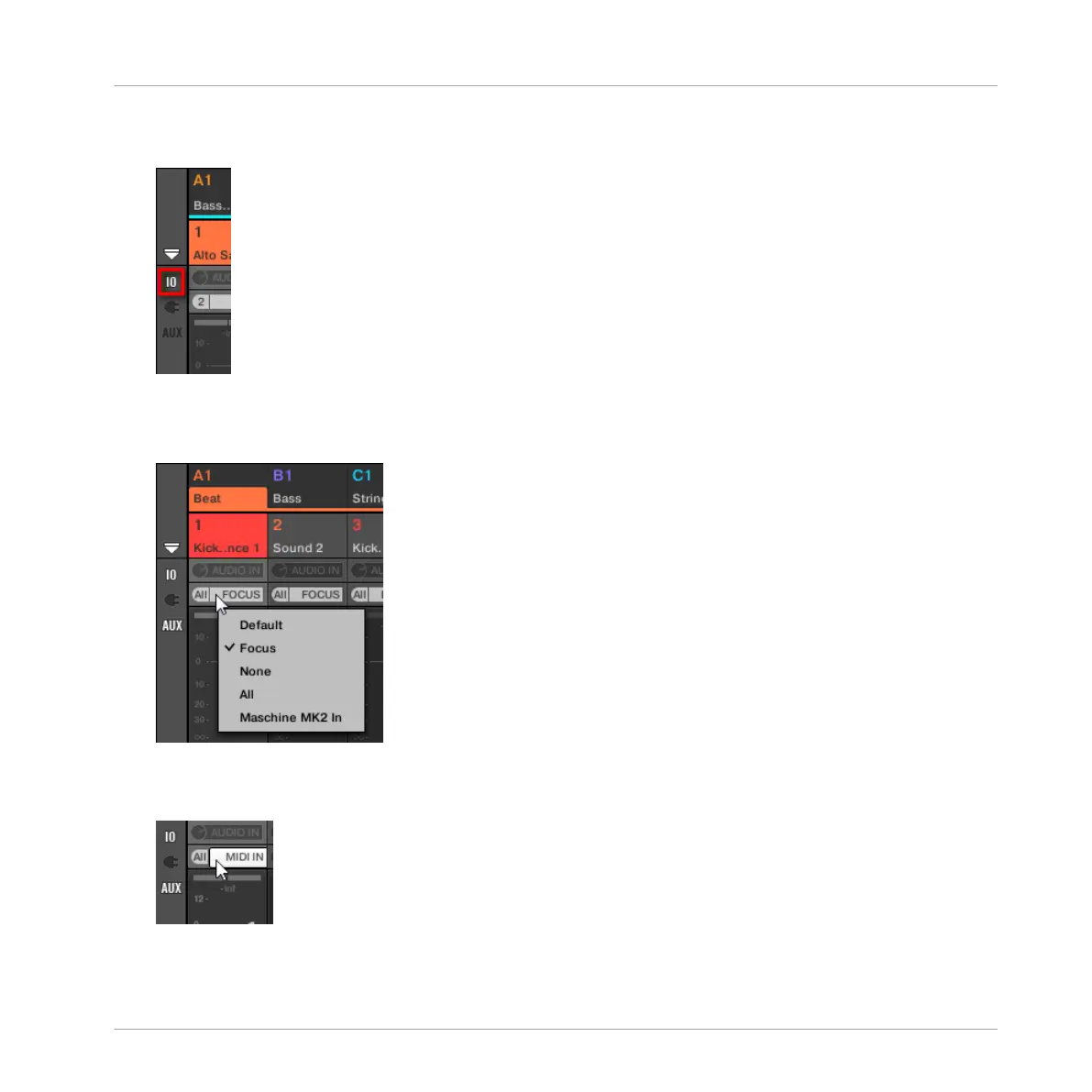

3. Check that the IO button is active on the left of the Mixer — if not, click it to enable it
and display the input/output settings of each channel strip.
4. Above the fader area in the channel strip of the Sound or Group you want to configure,
click the bigger field on the right (labeled MIDI IN by default) and select the desired MIDI
port in the menu.
This is equivalent to setting the Source parameter described above.
If MASCHINE is running as a plug-in you see a MIDI IN button instead. Click it to enable
the MIDI input from the host.
This is equivalent to enabling the Active button described above.
Audio Routing, Remote Control, and Macro Controls
Using MIDI Control and Host Automation
MASCHINE STUDIO - Manual - 479
