â–ª If you press an output button at the right of the level meter, your input selection stays ac-
tive — this is indicated by the dim lit input button. However, the level meter and Master
encoder will not be focused on the input but instead on the selected output. You must se-
lect your input again to control the input level and view it in the level meter.
Method 2: Using the Input Properties
1. Press Button 5 repeatedly until the Input properties are selected (you should see INPUT
at the top left of the right display, under Button 5/6).
2. Press NAVIGATE + pad 1 to select the Audio Parameter page. You can also press the
Page Left button until it turns off, since the Audio page is the first page of the Input prop-
erties.

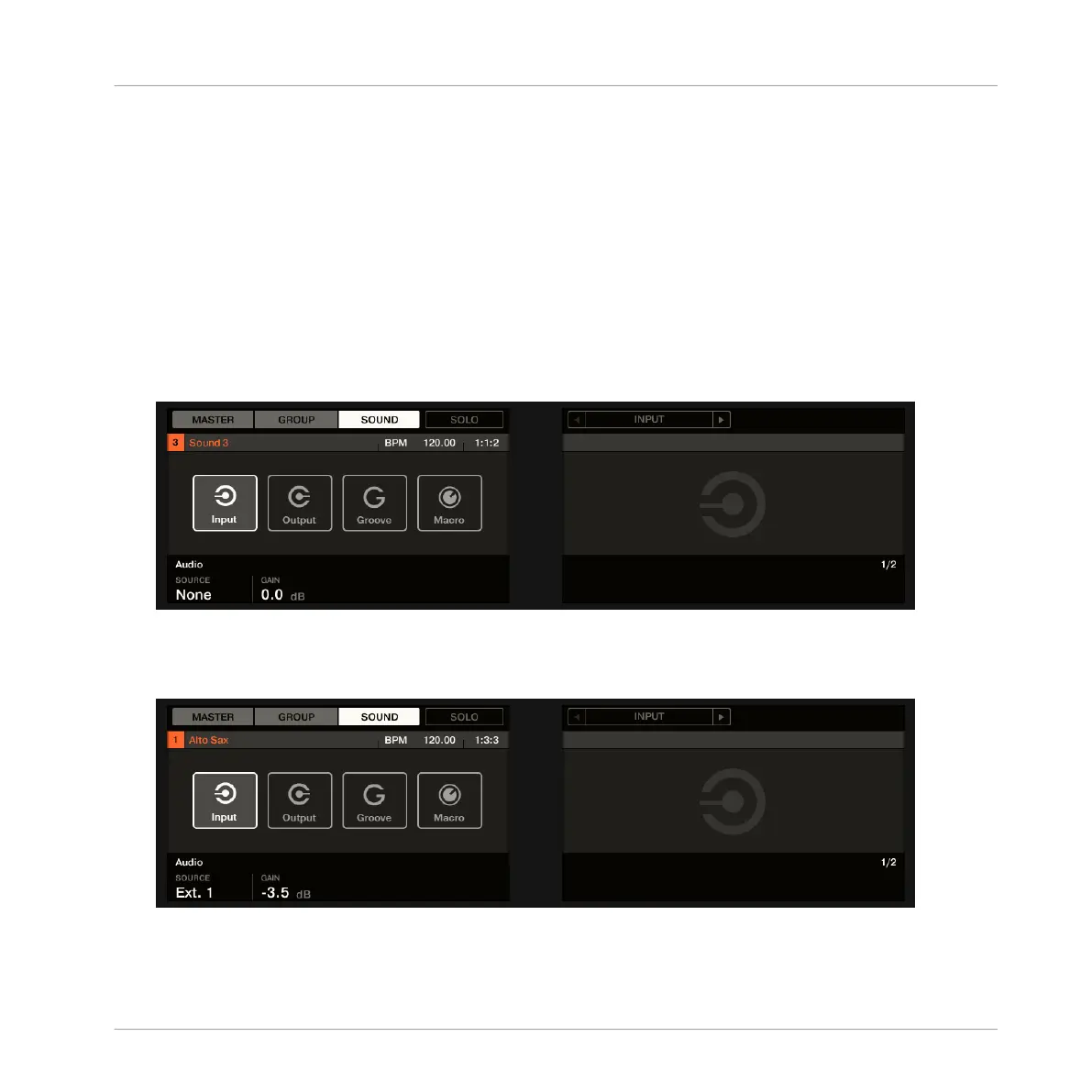

You will now see two parameters at the bottom of the left display: SOURCE (which selects
the source) and GAIN (which adjusts the level of the input).
3. Turn Knob 1 to set the SOURCE to Ext. 1.
Using Effects
Applying Effects to External Audio
MASCHINE STUDIO - Manual - 642
