NEC Electra Elite IPK II System User Manual

Document Revision 4C Electra Elite IPK II
2 - 550 IP Station (MEGACO) – MG 16
Operation
Example Configuration 1 – Static IP Addressing, One LAN:
This example shows System IP Phones connected to a single LAN (no routers) with a static IP address.
Programming – IPK II CPUII
1. 10-12-01 IPK II CPUII Network Setup – IP Address = 192.168.1.20
2. 10-12-02 IPK II CPUII Network Setup – Subnet Mask = 255.255.255.0
Programming – VoIP MG16 ETU
1. 84-05-01 VoIP IP Address Setup (Slot No.) = 192.168.1.21
2. 84-05-02 LAN Interface = 0: Auto Detect
3. 84-05-03 Master/ Slave = 1: Master
4. 84-05-04 VoIP Subnet Mask = 255.255.255.0
Programming – System IP Phones
1. DHCP Mode (Disabled)

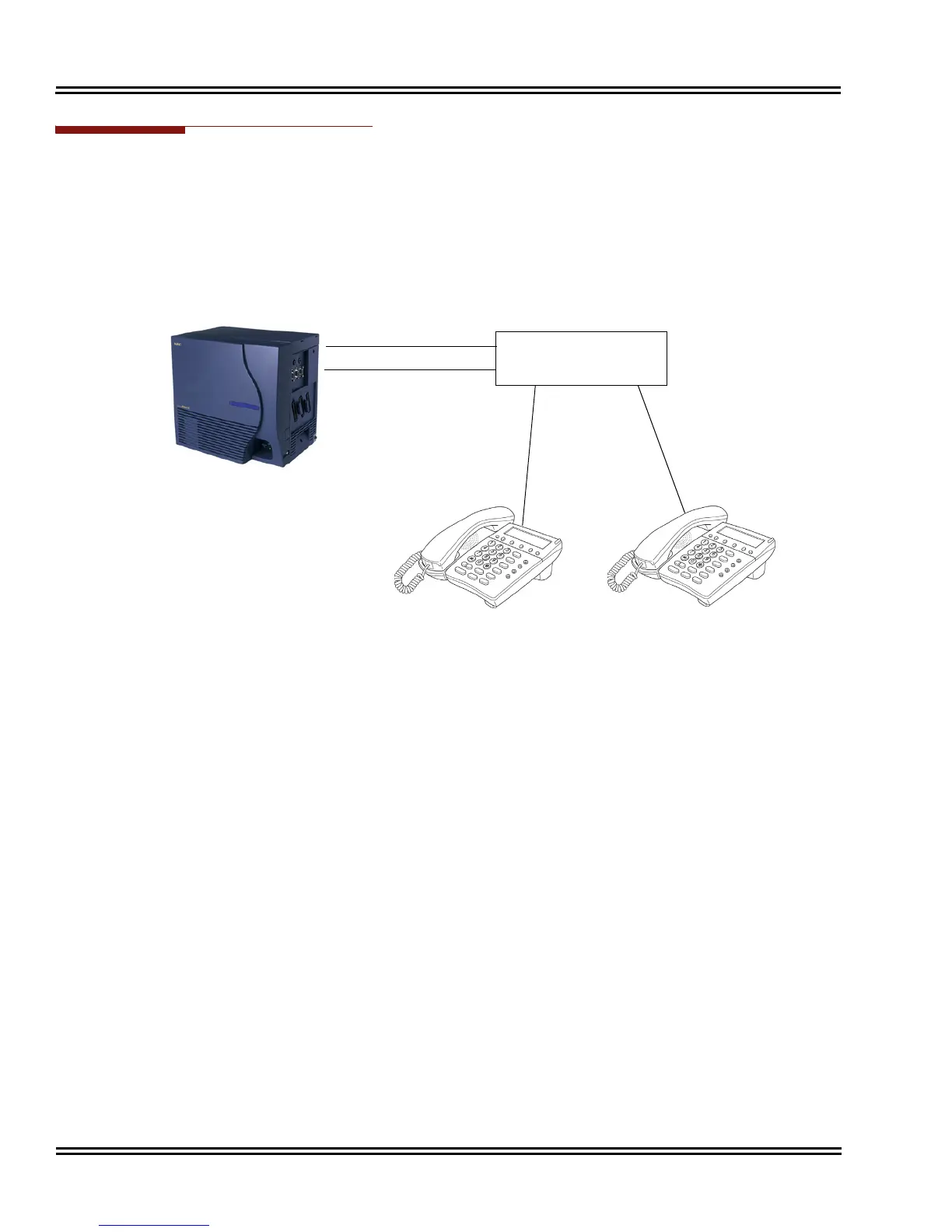

Figure 2-11 Example – Static IP Addressing, One LAN
IPK II CPU: 192.168.1.20
VoIP MG16: 192.168.1.21
Subnet Mask: 255.255.255.0
Default Gateway: 192.168.1.254
IPK II CPUII
VoIP MG16
Switch/Hub
IP Phone 1/ EXT 100
192.168.1.200
IP Phone 1/ EXT 101
192.168.1.201
