SECTION 5
DISASSEMBLY AND ASSEMBLY
125
Replacing Lifter Motor Assembly or Lifter Gear

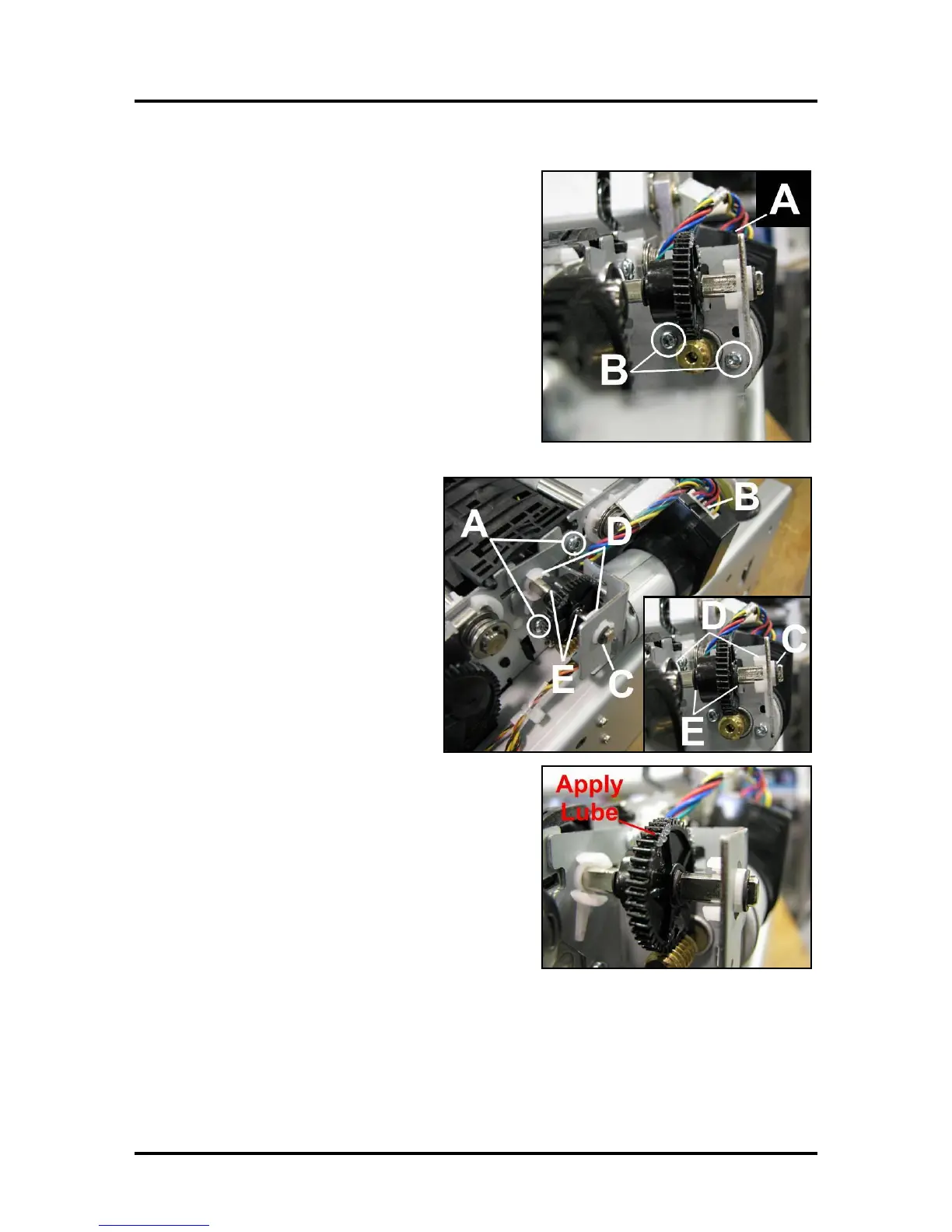

Remove Lifter Motor Assembly Only:
[A] Unplug the wire harness from the Lifter Motor
Assembly.
[B] Remove the (2) screws holding the Motor Assembly
to the Motor Assembly Bracket.
[C] Gently remove the Motor Assembly. Take care that
the Worm Gear does not damage the Lifter Gear.
Install in reverse order. NOTE: Make sure Worm Gear
and Lifter Gear are engaged correctly. Apply a small
amount of gear lube to Lifter Gear.
Remove Lifter Motor Assembly and Lifter Gear
[A] Remove (2) screws holding Lifter
Motor Assembly Bracket.
[B] Unplug the wire harness from the
Lifter Motor.
[C] Remove the C-clip located on the end
of the shaft.
[D] Unpin pegs and turn the (2) plastic
bayonet bearings to release the Motor
Bracket.
[E] Remove the (2) C-clips (one on either
side) of the Lifter Gear.
[F] Slide Lifter Motor Assembly and
Lifter Gear off of shaft.
Install in reverse order. NOTE: Make sure Worm Gear
and Lifter Gear are engaged correctly. Apply a small
amount of synthetic grease to Lifter Gear (Super Lube
21030 or equivalent).
