SECTION 5
DISASSEMBLY AND ASSEMBLY
133

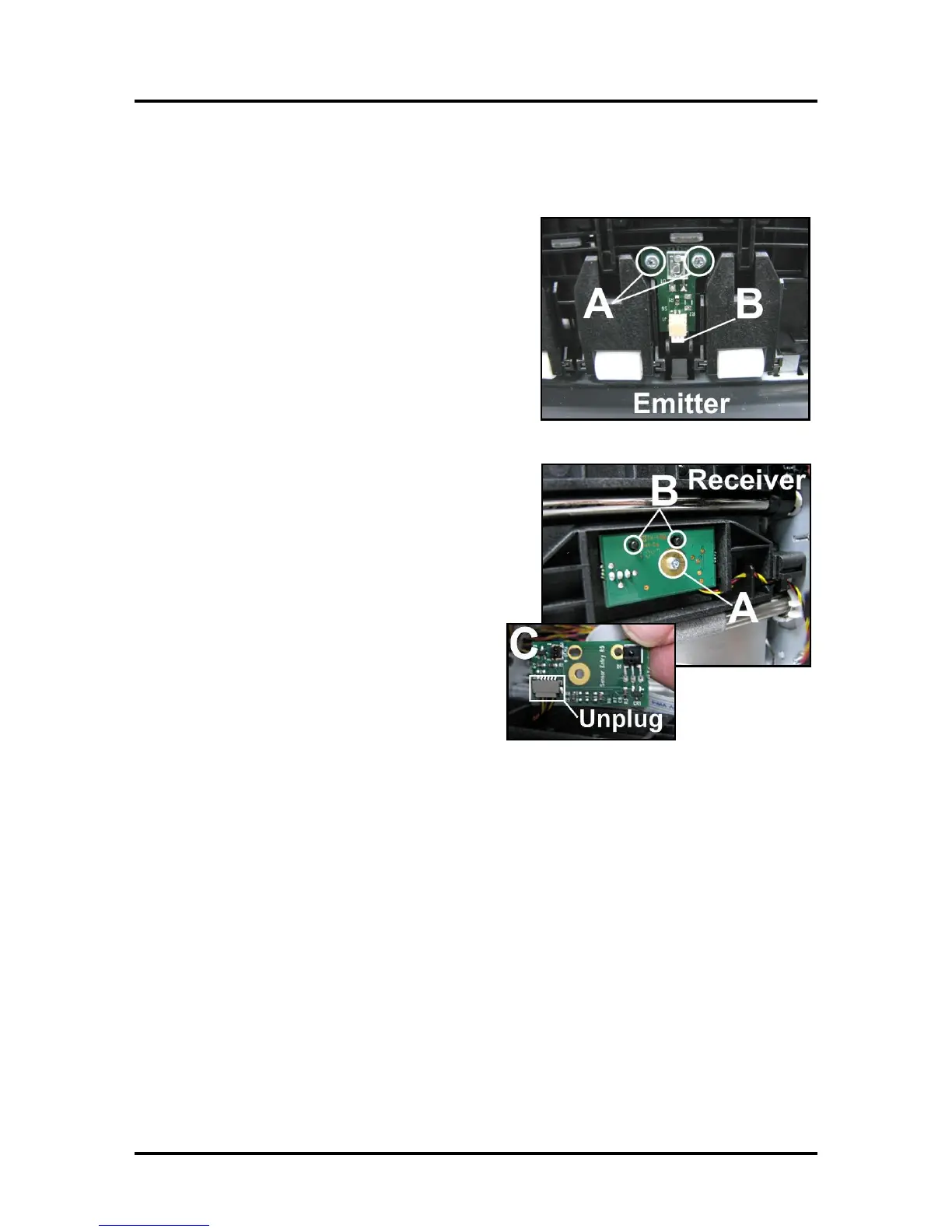

Replacing Paperpath Entry Sensor
The Paperpath Entry Sensor consists of an Emitter located in the upper Clamshell and a Receiver located in
the lower Clamshell.
Emitter (Under Upper Clamshell):
[A] Remove (2) screws.
[B] Disconnect wiring harness.
Install in reverse order.
Receiver (Under Lower Clamshell):
[A] Remove (1) screw.
[B] Carefully pull Entry Sensor off locating pins.
[C] Turn Sensor over and unplug wiring harness.
Install in reverse order.
