SECTION 5
DISASSEMBLY AND ASSEMBLY
123
Replacing the Ink Revolvers
First Deprime the system and remove the Printhead
Cartridge. New Ink Revolver includes attached leader hoses
and hose connectors.
NOTE: Procedure is similar for both Valve side Ink
Revolver and Pump side Ink Revolver (they are labeled).
IMPORTANT! Make sure you replace the Valve side Ink
Revolver in the Valve side and Pump side in the Pump side.

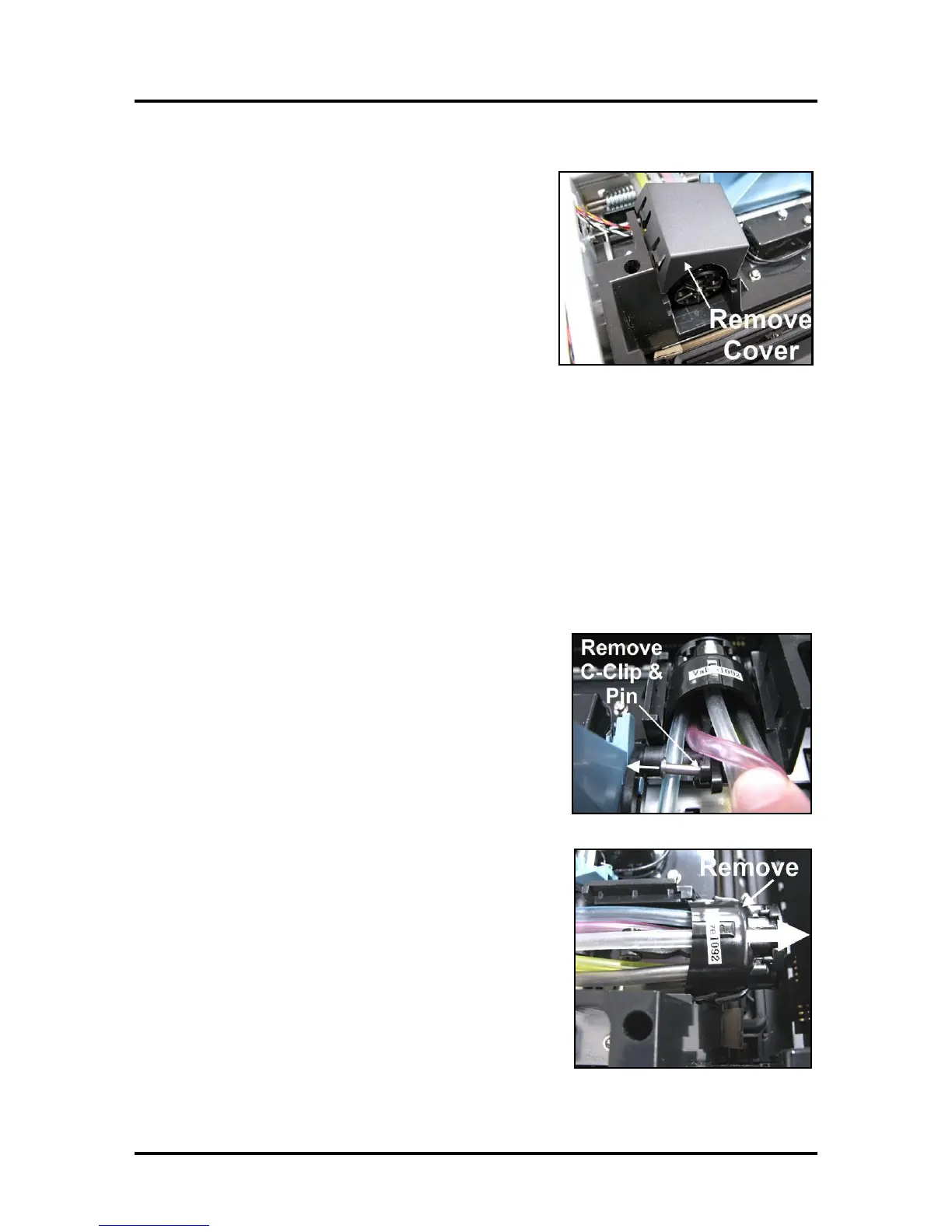

1. Remove Cover by squeezing sides to release the tabs.
Lift Cover out and set aside.
NOTE: Cover does not have to be removed to clean
Ink Revolver Couplings.
Replacing the Ink Revolvers:
1. Route the hose leads from the new Revolver through the same frame cutout as the existing hoses.
2. Work one hose at a time: Carefully match, cut and connect the existing Ink Hoses to the hose
leads on the new Ink Revolver. Trim the hose leads to fit as needed. Use the hose connector barbs
included in kit.
IMPORTANT! Do not mix colors! Ink Hoses, including the two black Ink Hoses, are NOT
interchangeable!
3. Once all the hoses have been connected to the new Ink
Revolver, remove the C-Clip from the hinge pin holding
the Ink Revolver. Remove the pin.
4. Slide the old Ink Revolver forward in its track and
remove.
To Next Page
