SECTION 5
DISASSEMBLY AND ASSEMBLY
66

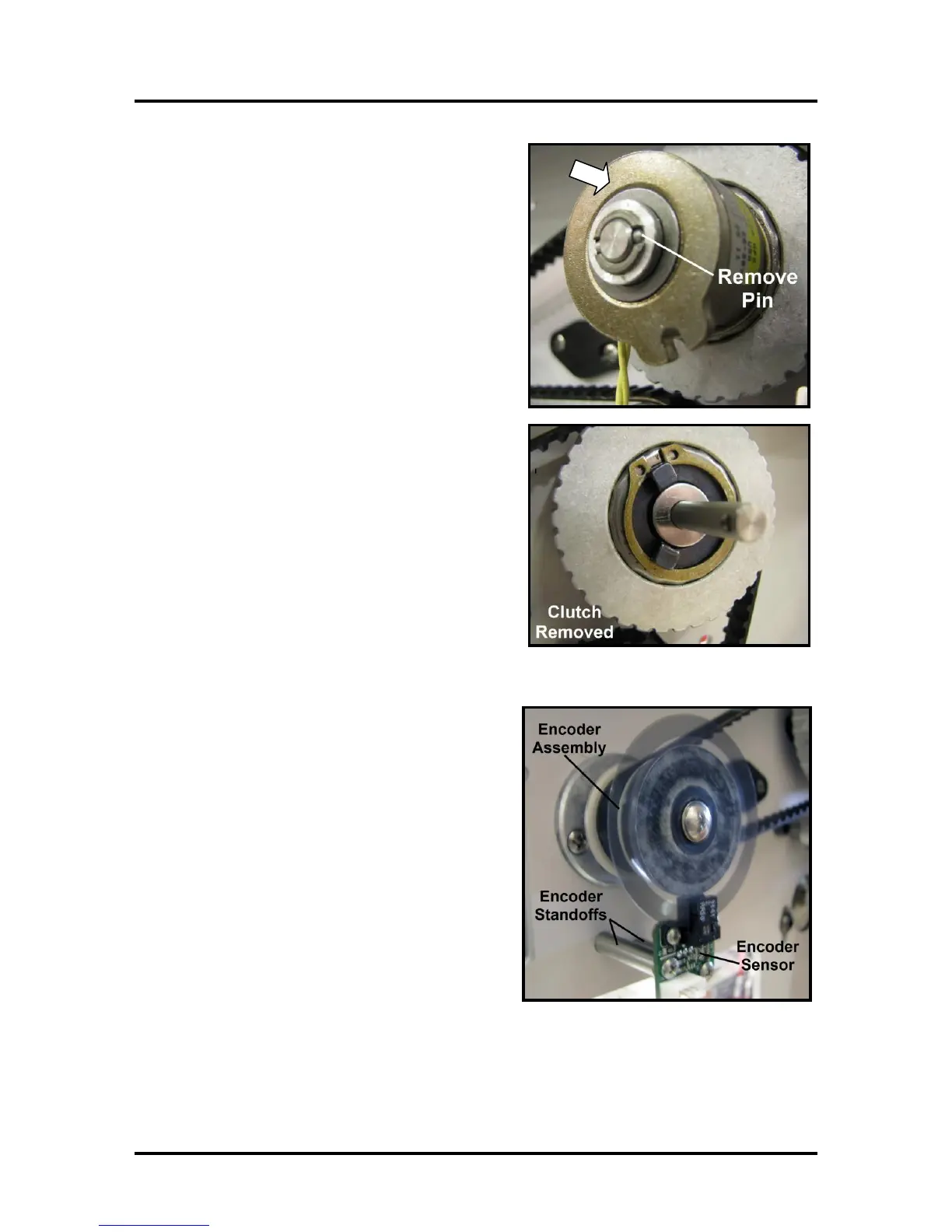

3. Push the Clutch toward the pulley to get access to the
mounting pin. Remove the retaining pin.
4. Remove the Clutch from the Feed Roller Shaft.
5. Reassemble in reverse order.
Replacing the Feeder Encoder and/or Encoder Sensor
1. Remove the Encoder Sensor from the Rear
Side Frame.
[A] Remove the (2) Screws holding the Encoder
Circuit Board to the two standoffs.
[B] Remove the Encoder Sensor by carefully
moving the Sensor down and away from the
Encoder Wheel. NOTE: Be very careful not to
damage Encoder Wheel.
2. Remove the Encoder Wheel Assembly from
the Pull Out Shaft Assembly.
Remove Screw and Washer from the center of
Encoder Wheel. Do not bend or damage the
Encoder during removal.
3. To Reinstall: Insert Screw with Washer through
the Encoder Wheel. Apply Blue Loctite to
threads. Insert Screw into threaded end of the Pull
Out Shaft.
4. Reassemble in reverse order. NOTE: Check that Encoder Wheel and Drive Belt turn freely.
