Neopost MACH 5 User Manual

SECTION 5
DISASSEMBLY AND ASSEMBLY
70
Replacing Delivery Rollers
The Delivery Rollers are part of the Front Center Assembly on the feed end of the Print Engine.

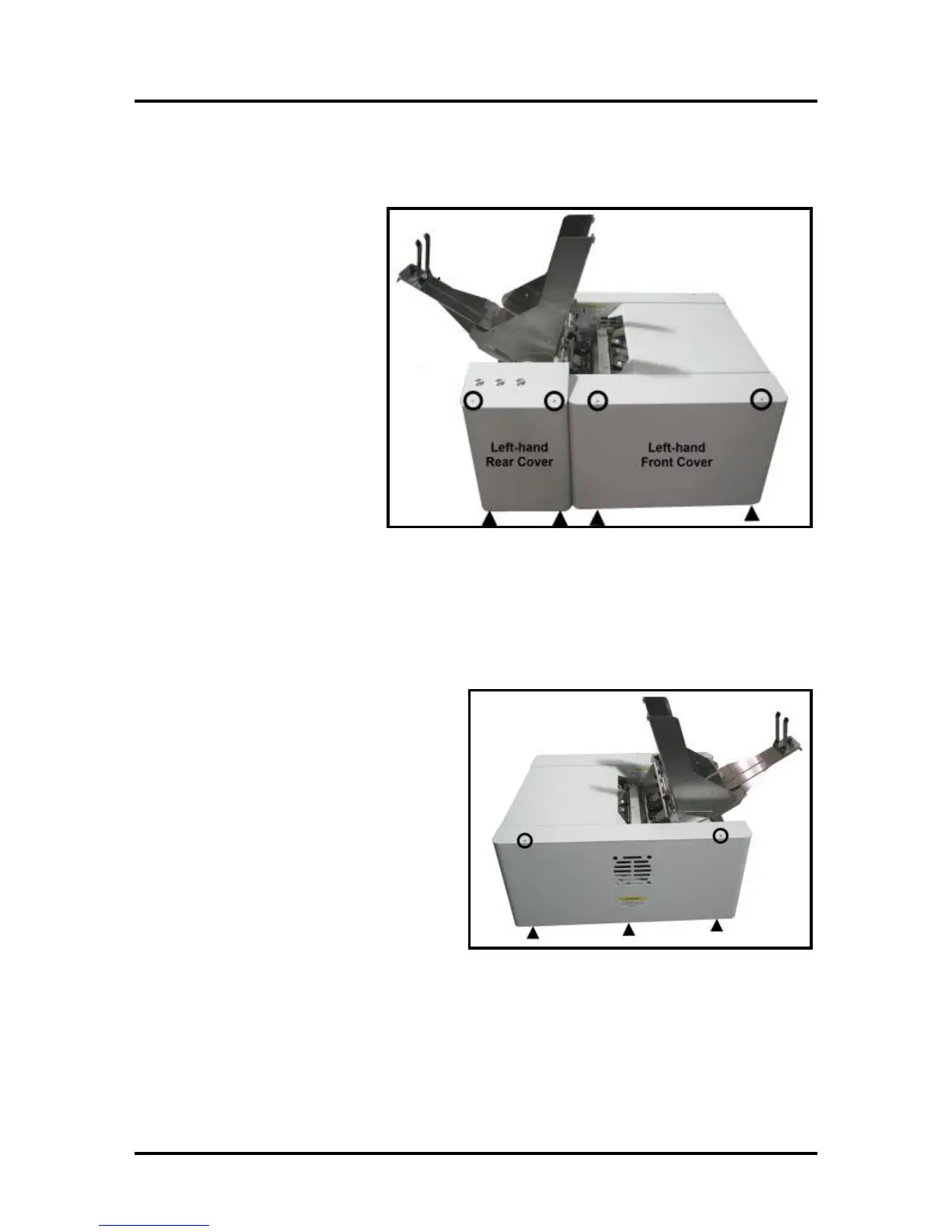

1. Remove the Left hand Rear
Side Cover. Remove (2)
screws at the top and
bottom of the Rear Left-
hand Side Cover. Remove
the Cover.
2. Remove (2) screws at the
top and bottom of the Front
Left-hand Side Cover. Pull
Cover away from machine
slightly.
3. Remove the Right-hand Side Cover.
Remove the (2) screws at the top of the
Cover. Then remove the (3) screws from
the bottom of the Cover.
