SECTION 5
DISASSEMBLY AND ASSEMBLY
134

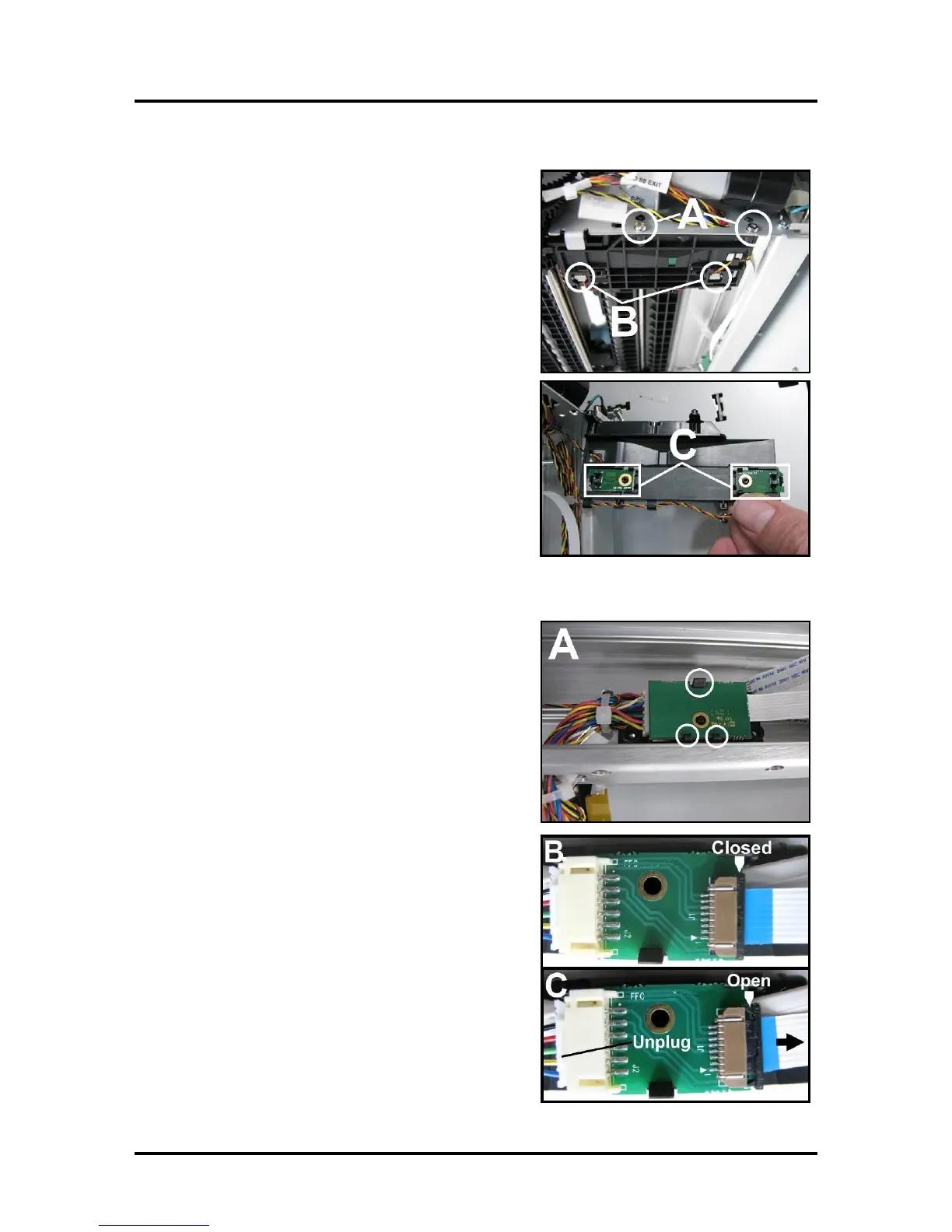

Replacing Service Station Sled Printed Circuit Boards
[A] Remove (2) screws.
[B]. Carefully disconnect the (2) connectors.
[C] Swing Sled away from Clamshell and turn over.
Carefully unclip the two printed circuit boards.
Install reverse order. NOTE: Make sure wire harnesses
are plugged into correct printed circuit board.
Replacing Wiper Motor Flex Cable PCA
[A] Carefully unclip the Printed Circuit Board from the
holder and turn it over. NOTE: Tabs break easily.
[B] Disconnect the Ribbon Cable. Slide the Latch open
on the Circuit Board to release the Ribbon Cable.
[C] Disconnect the Wiring Harness.
Install in reverse order. NOTE: Make sure ribbon
cable and wiring harness are plugged in correctly.
