SECTION 5
DISASSEMBLY AND ASSEMBLY
120

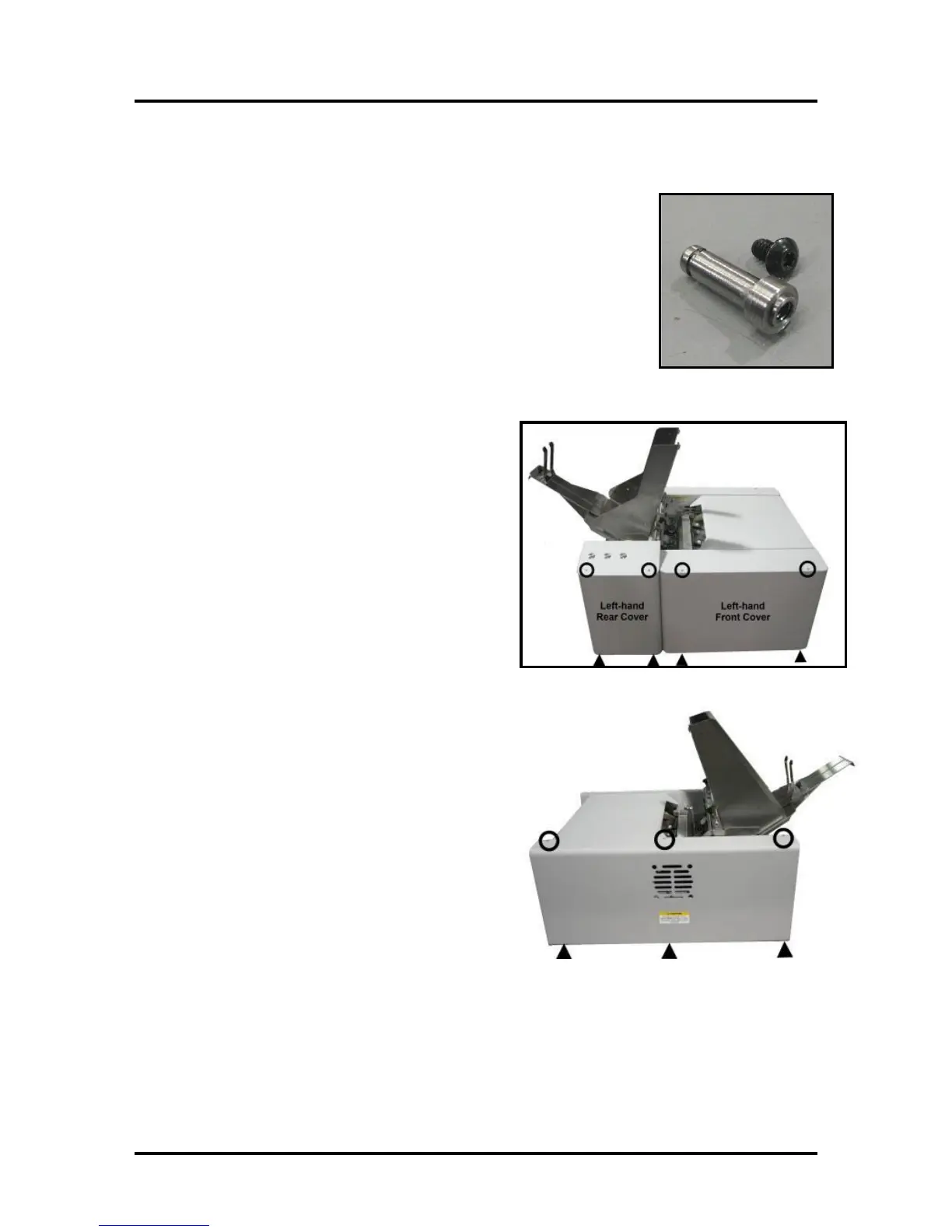

Lower Clamshell Latch Pin Replacement Kit (42-900-30)
This kit and procedure is used to replace Lower Latch Pins that may have become bent or broken.
The 42-900-30 Kit consists of: (1) Latch Pin, (1) Allen screw.
Tools Needed: Small Phillips screwdriver, small long shaft Phillips screwdriver,
1/16 Allen head screwdriver, and Pliers.
NOTE: Check if the Latch Pins are pressed-in on your Print Engine; not
welded. Later versions have welded pins that cannot be replaced.
Remove the Side Covers:
Left-hand Side Cover:
Remove (2) screws at the top and bottom of the Left-hand
Rear Side Cover. Remove the Cover.
Right-hand Side Cover
Remove the (3) screws at the top and bottom of the
Cover.
