SECTION 5
DISASSEMBLY AND ASSEMBLY
121

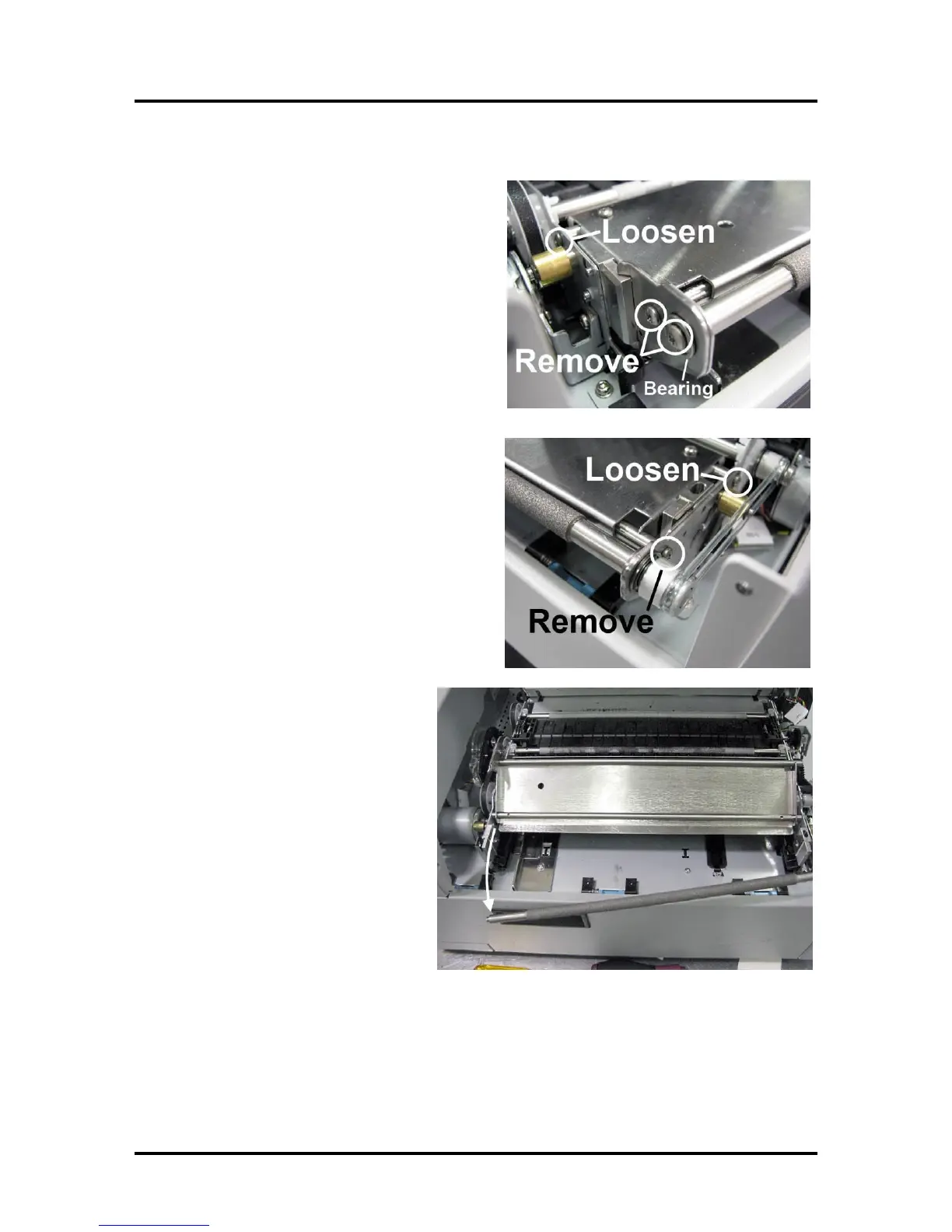

PROCEDURE:
1. [A] Release the two Latches and open the Print
Engine Clamshell.
[B] Remove (2) screws from Operator side of
Exit Center Plate Assembly.
[C] Loosen (1) screw.
2. [A] Remove (1) screw from non-operator side
of Exit Center Plate Assembly.
[B] Loosen (1) screw.
3. Detach Exit Roller from the
Operator side. NOTE: Be careful
not to drop or lose the bearing.
Then pivot Exit Center Plate up out
of the way.
To Next Page
