SECTION 5
DISASSEMBLY AND ASSEMBLY
128
Replacing Encoder or Encoder Sensor

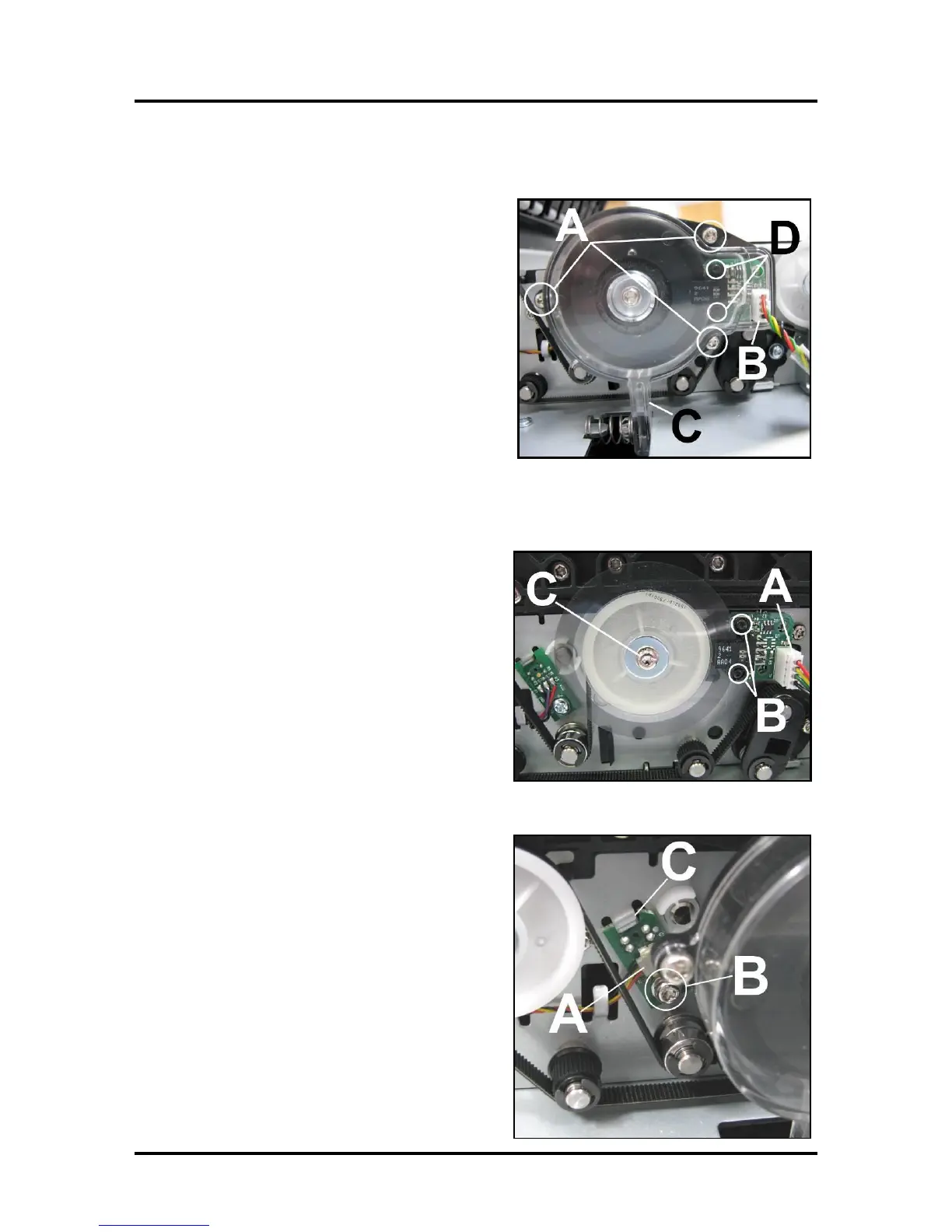

Printers with Z3/Z4/MR Print Engines have an enclosed Encoder Assembly (see picture at below).
[A] Remove (3) screws holding Encoder Cover in
place.
[B] Unplug the wire harness from the Encoder
Sensor.
[C] Carefully pivot the Cover away from the Encoder
Wheel. Be careful of the spring.
[D] Remove the (2) screws holding the Encoder
Sensor in place and pull away from Encoder wheel.
NOTE: Be careful not to damage the Wheel.
[E] Remove the single screw holding the Encoder
Wheel to the roller shaft remove the Encoder Wheel
Assembly. NOTE: Be careful of the tension spring
and washers located on the shaft behind the Encoder
Assembly.
Install in reverse order.
Printers with earlier Z2i Print Engines may have an
exposed Encoder Assembly (see picture at right).
[A] Unplug the wire harness from the Encoder
Sensor.
[B] Remove the (2) screws holding the Encoder
Sensor in place and pull away from Encoder wheel.
NOTE: Be careful not to damage the Wheel.
[C] Remove single screw and washer to remove the
Encoder Assembly.
Install in reverse order.
Replacing Service Station Lifter Arm Sensor
[A] Unplug the wire harness from the Lifter Arm
Sensor.
[B] Remove (1) screw holding the Sensor to the
Print Engine Frame.
[C] Slide Sensor out of the retainer clip and remove
the Sensor.
Install in reverse order.
