APPENDICES
192

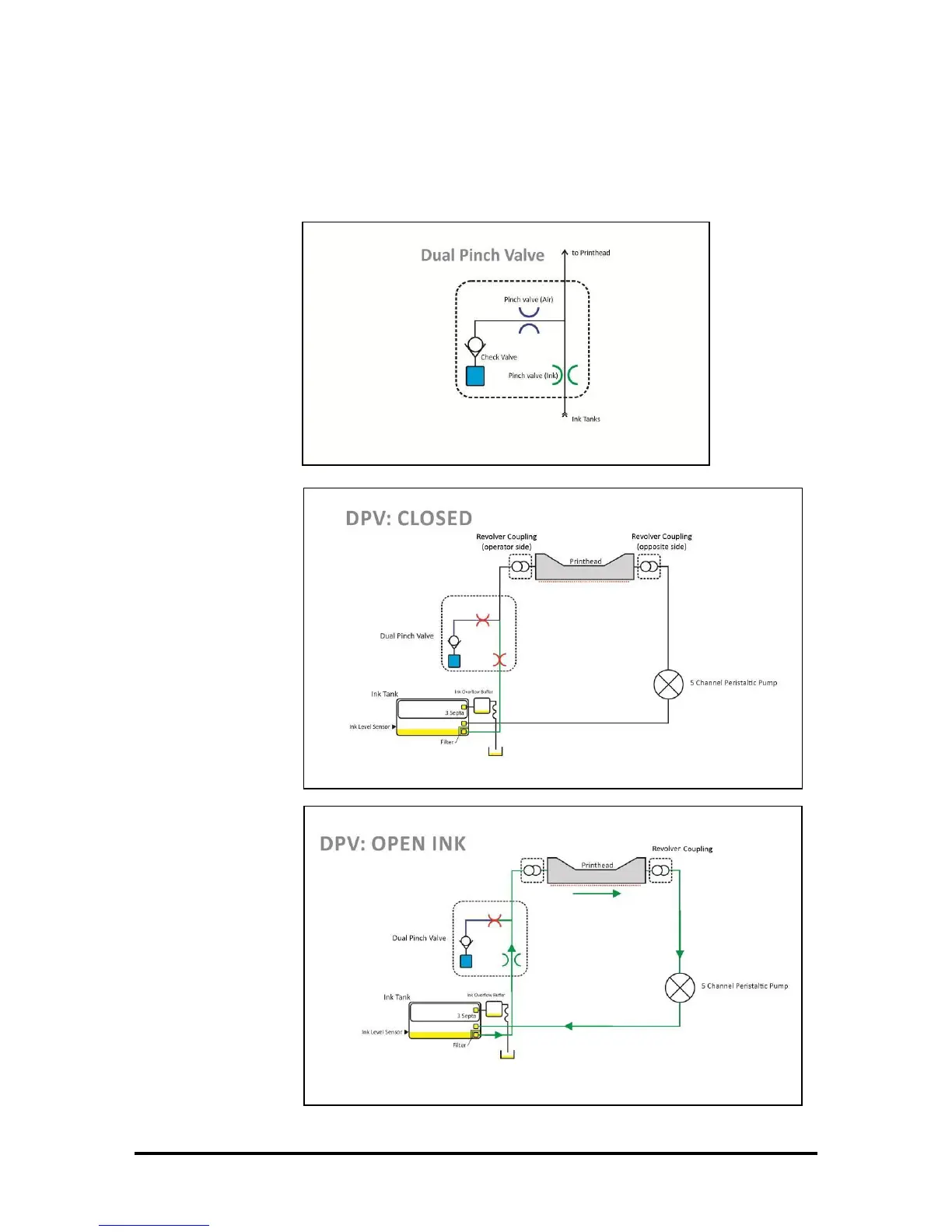

Appendix D – Ink Delivery System (IDS)
Theory of Operation
Dual Pinch Valve (DPV) and Pump Control Sequences
STOP INK FLOW
PUMP: OFF
DPV: CLOSED
No Ink Flow
Printer Powered-Down
ALLOW INK FLOW
PUMP: ON
DPV: OPEN INK
Allows Ink Flow
Circulating Ink
Printing
Equalizing Pressure
Dual Pinch
Valve (DPV)
