SECTION 5
DISASSEMBLY AND ASSEMBLY
135

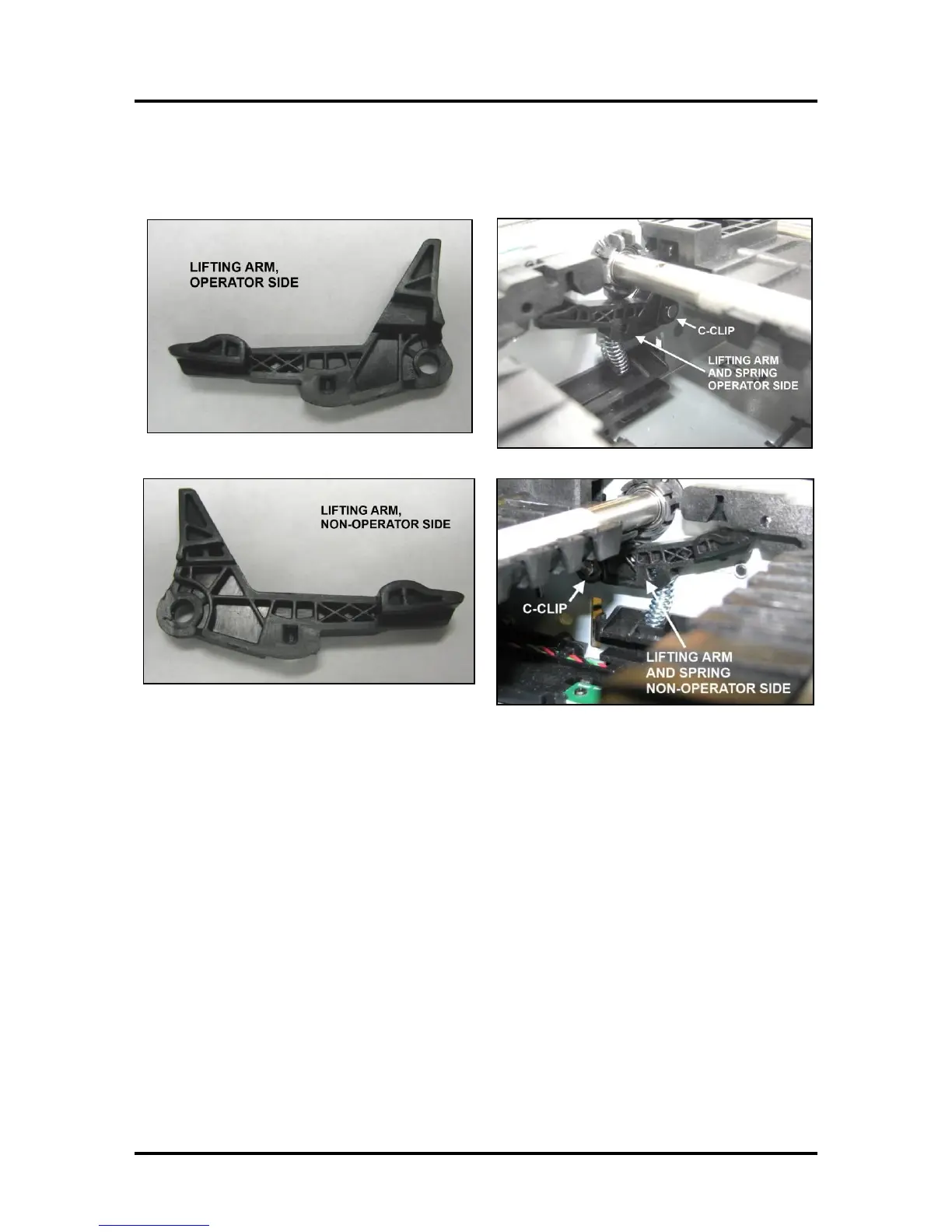

Replacing Service Station Lifting Arms
Replacement Kit (42-900-05) includes two Lifting Arms and two C-Clips (one each for Operator and
Non-Operator Side installation.)
Before you begin:
Prepare the printer ready for service.
Tip: Depriming is not possible if lift arms are broken. In this case leave the printhead and tanks
installed, to reduce the chance of ink leakage.
Service Station must be removed prior to servicing the Lifting Arms. See "Removing the Service
Station".
Check the Index, Home and Lift Arm sensors for proper function. See “Scan Sensors” feature.
If sensor problem is found you can clean /replace the sensors, during this procedure.
Remove the Print Engine from the printer. See “Removing the Print Engine”
To Next Page
