SECTION 5
DISASSEMBLY AND ASSEMBLY
136

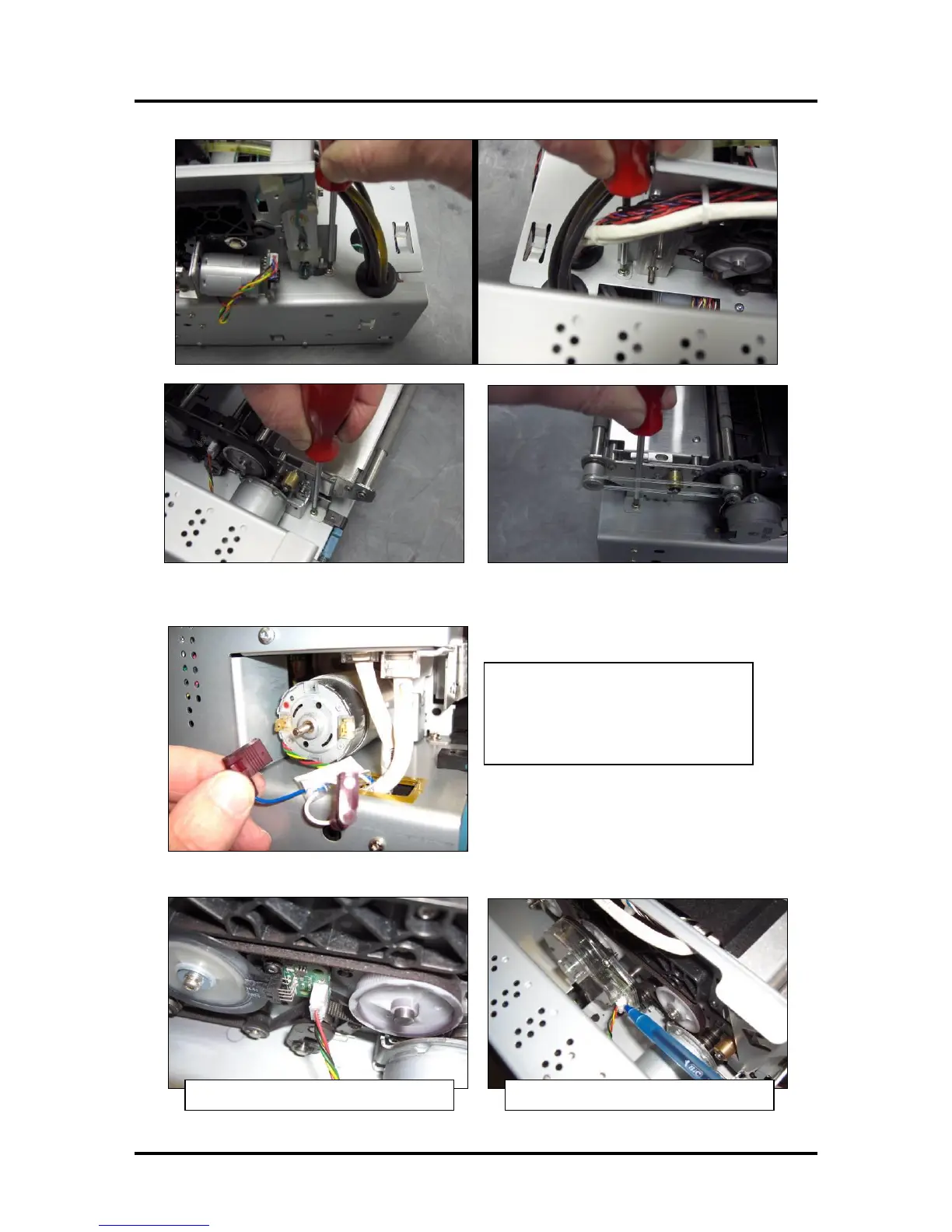

1. Remove the four screws that secure the clamshell to the deck.
2. Disconnect the Transport Motor on the Print Engine.
3. Disconnect encoder sensor connector. (this is an image of the Z2i engine).
Encoder on Z2i Print Engine
Encoder on Z3/Z4/MR Print Engine
Note: This is a picture of an older Print
Engine. On current Print Engines the
Main PCB cover will need to be
removed before you can access the
motor wire connections.
To Next Page
