SECTION 5
DISASSEMBLY AND ASSEMBLY
60

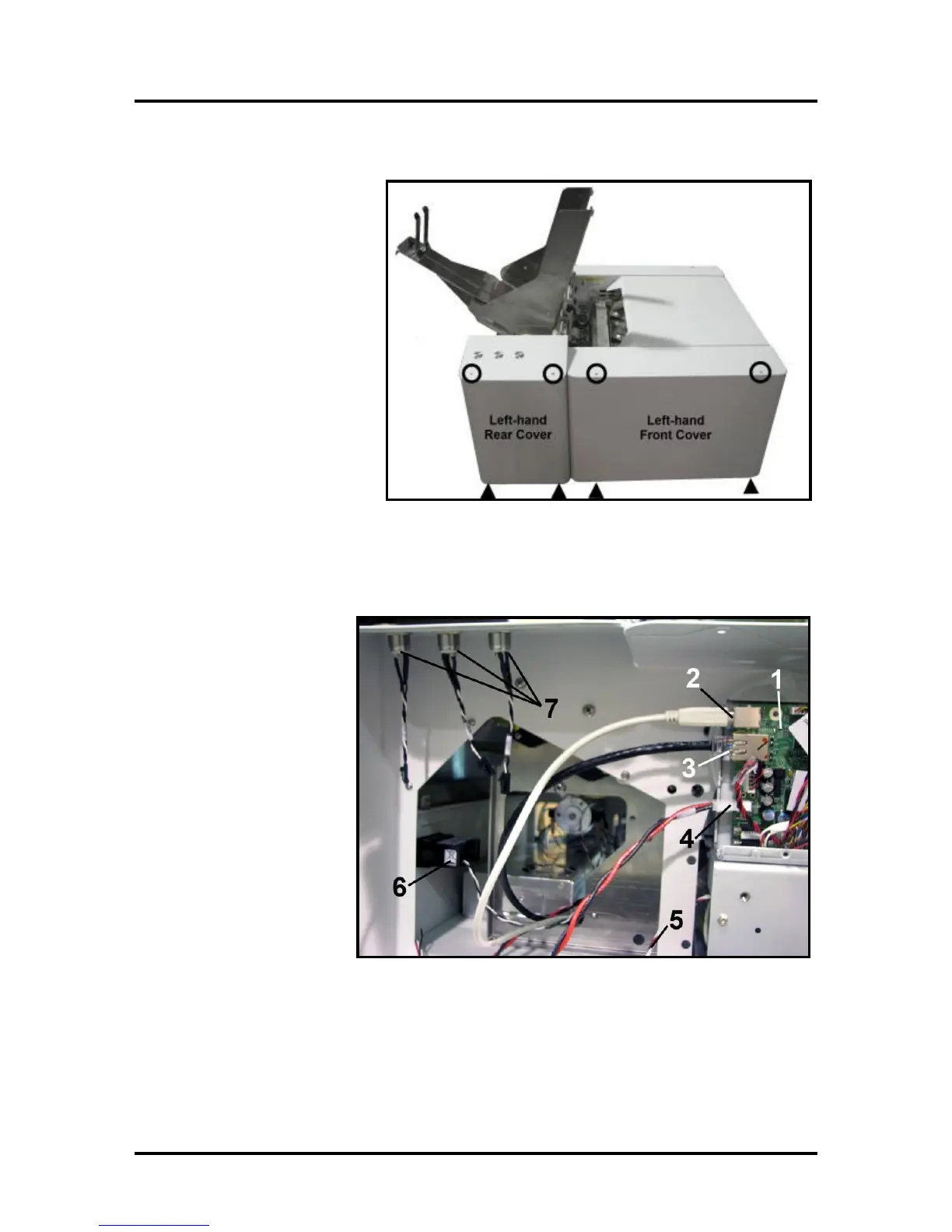

Left-hand (Operator) Side Covers
1. Remove (2) screws at the
top and bottom of the Left-
hand Rear Side Cover.
Remove the Cover.
2. Remove (2) screws at the
top and bottom of the Left-
hand Front Side Cover. Pull
Cover away from machine
and set aside.
3. Reassemble in reverse
order.
Components under Left-Hand (Operator) Side Covers
1. Main Print Engine
Printed Circuit Board
2. Printed Circuit Board
USB Connector
3. Printed Circuit Board
Network Connector
4. Printed Circuit Board
Main Power Connector
5. Wiring harness for
Control Panel Buttons
6. LCD Counter
7. Control Panel Buttons
To Next Page
