SECTION 5
DISASSEMBLY AND ASSEMBLY
122

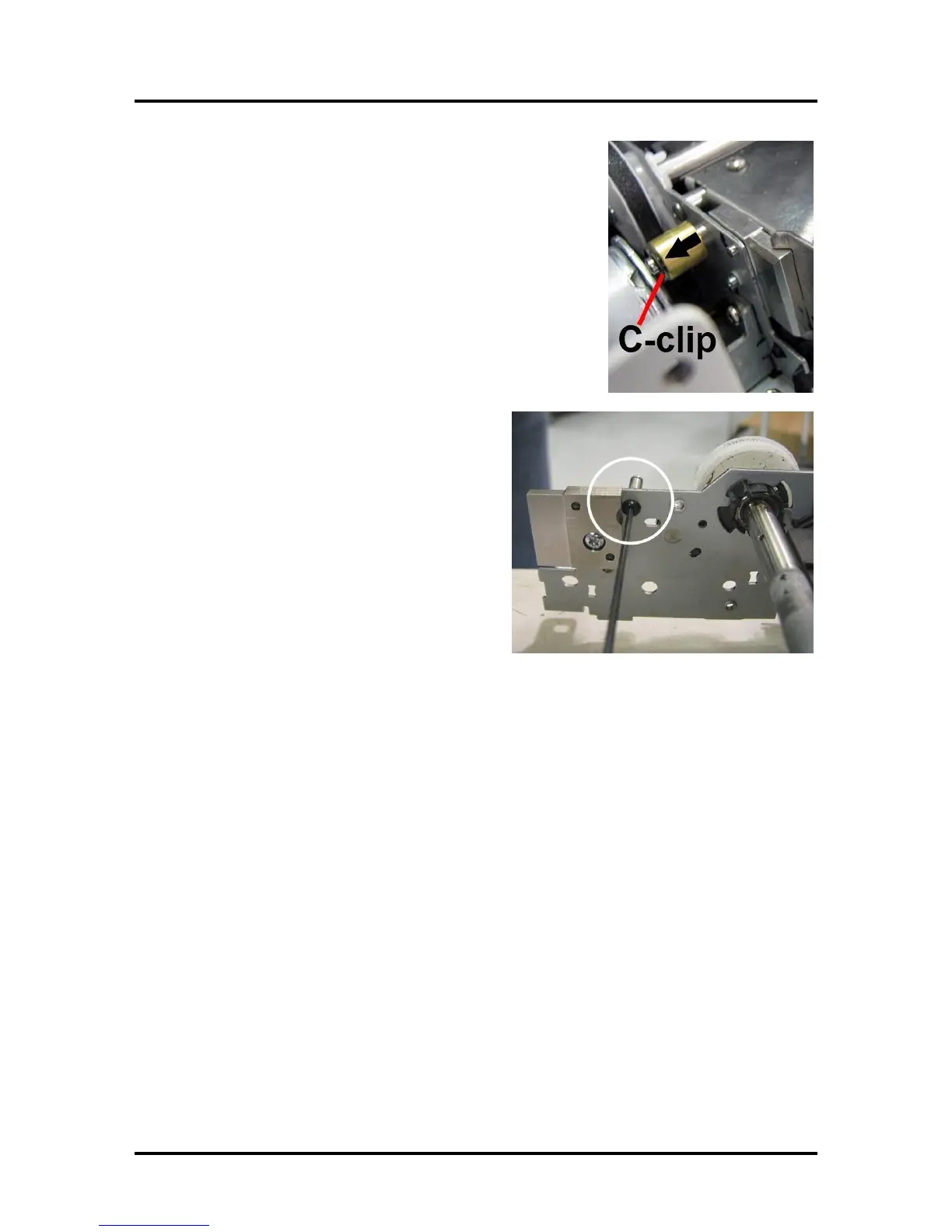

4. Remove the C-clip from the Latch Roller, then slide the Latch
Roller off the old Latch Pin. Keep C-clip and Latch Roller for
reinstallation.
5. Remove Latch Pin with pliers. NOTE: Only works if Latch
Pin is press fit, if Latch Pin is welded, this procedure will
not work.
6. Align new Latch Pin with existing hole. Attach
with Allen screw.
7. Reinstall Latch Roller and secure with C-clip.
8. Reinstall Exit Roller and Exit Center Plate
Screws.
9. Reinstall Side Covers.
