SECTION 5
DISASSEMBLY AND ASSEMBLY
69

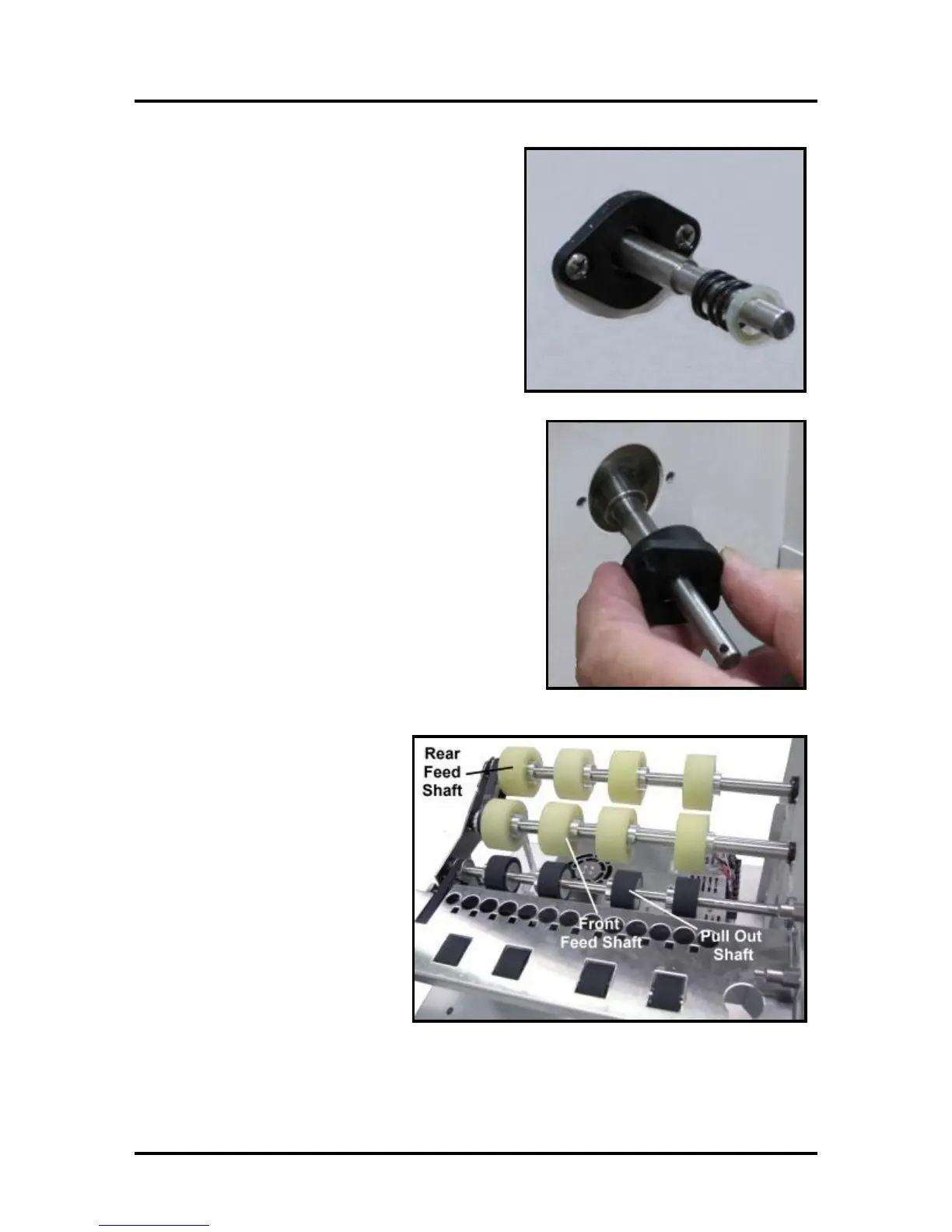

11. Remove the washer and spring from the Feed Roller
Shaft.
NOTE: The spring and washer keep tension on the
clutch so that the pin holding the clutch remains in
place. Reassemble these parts as shown.
12. Remove the two screws holding the Bearing Housing to
the Side Frame. Push the Rear Feed Roller Assembly
toward you to release it from the bearing on the other side
of the machine. Carefully remove the belt. Then lift the
Roller and Shaft Assembly from the machine.
13. The Front Feed Rollers and Pull Out
Rollers and Shafts can be removed
in the same manner as the Rear Feed
Rollers and Shaft. Remove the
bearing cap on the Side Frame, slide
the Roller and Shaft toward you,
carefully remove the belts and lift
out of the machine.
14. The Rollers are attached to the
Shafts with Allen screws. Loosen the
screws to slide the Rollers off the
Shafts.
15. Reassemble in reverse order. Take
care to reinstall the belts that drive
the Rollers during assembly.
