SECTION 5
DISASSEMBLY AND ASSEMBLY
138

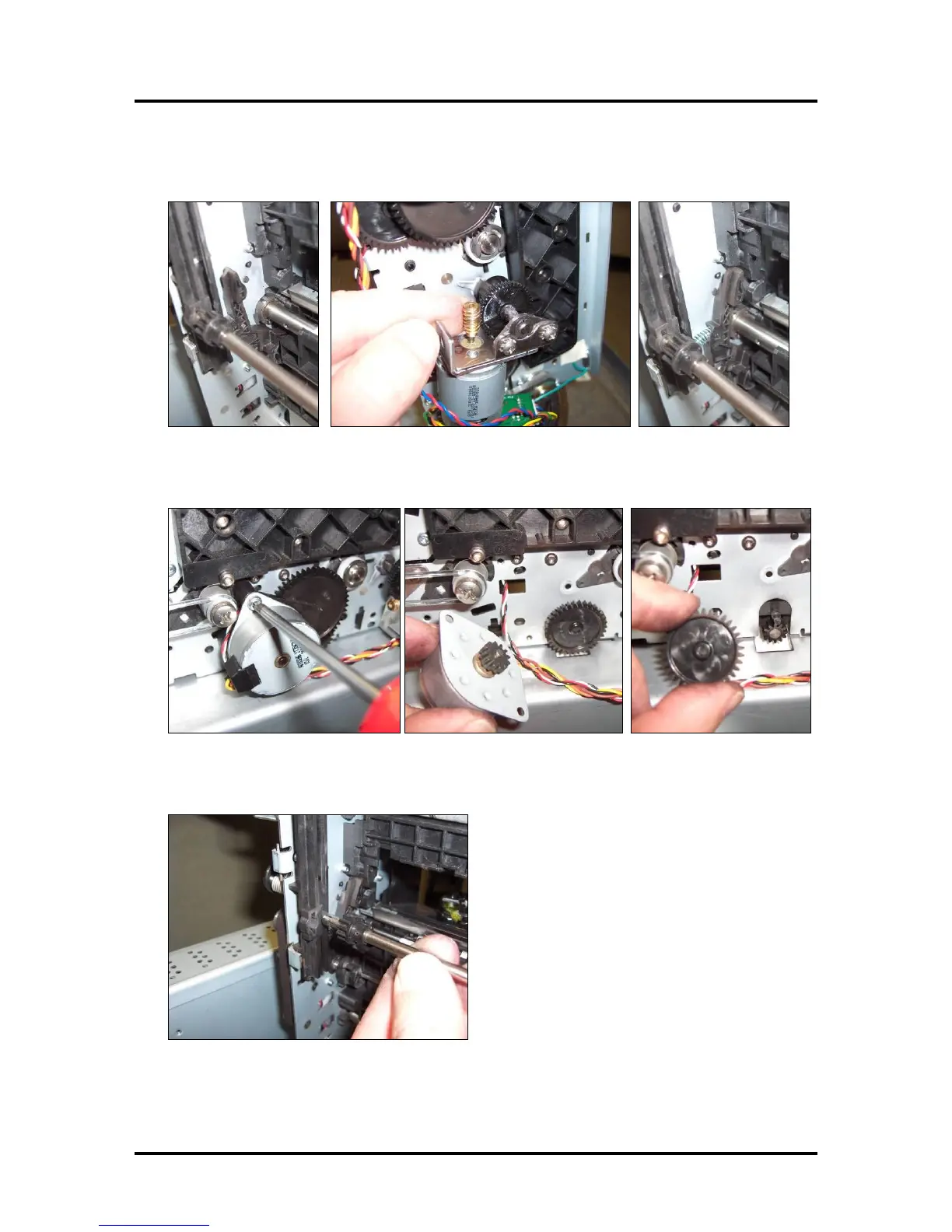

7. Turn the lifting arm motor (worm gear) to raise the lifting arms to their highest position.
Tip: A long, straight, 5/64”Allen wrench can be pushed into the round hole at the end of the worm
gear and used to spin the gear. This is not a hex shaped hole, in the worm gear, but you can usually get
enough friction to turn the gear.
8. Remove the Service Station Drive Motor (Servo), bracket and drive gears. This will allow free the
Service Station Drive Shaft so it can be shifted towards the non-operator side of the Print Engine.
9. Slide the Service Station Drive Shaft towards the non-operator side of the Print Engine to release it
from the Service Station Side Rail (operator side).
To Next Page
