SECTION 5
DISASSEMBLY AND ASSEMBLY
64

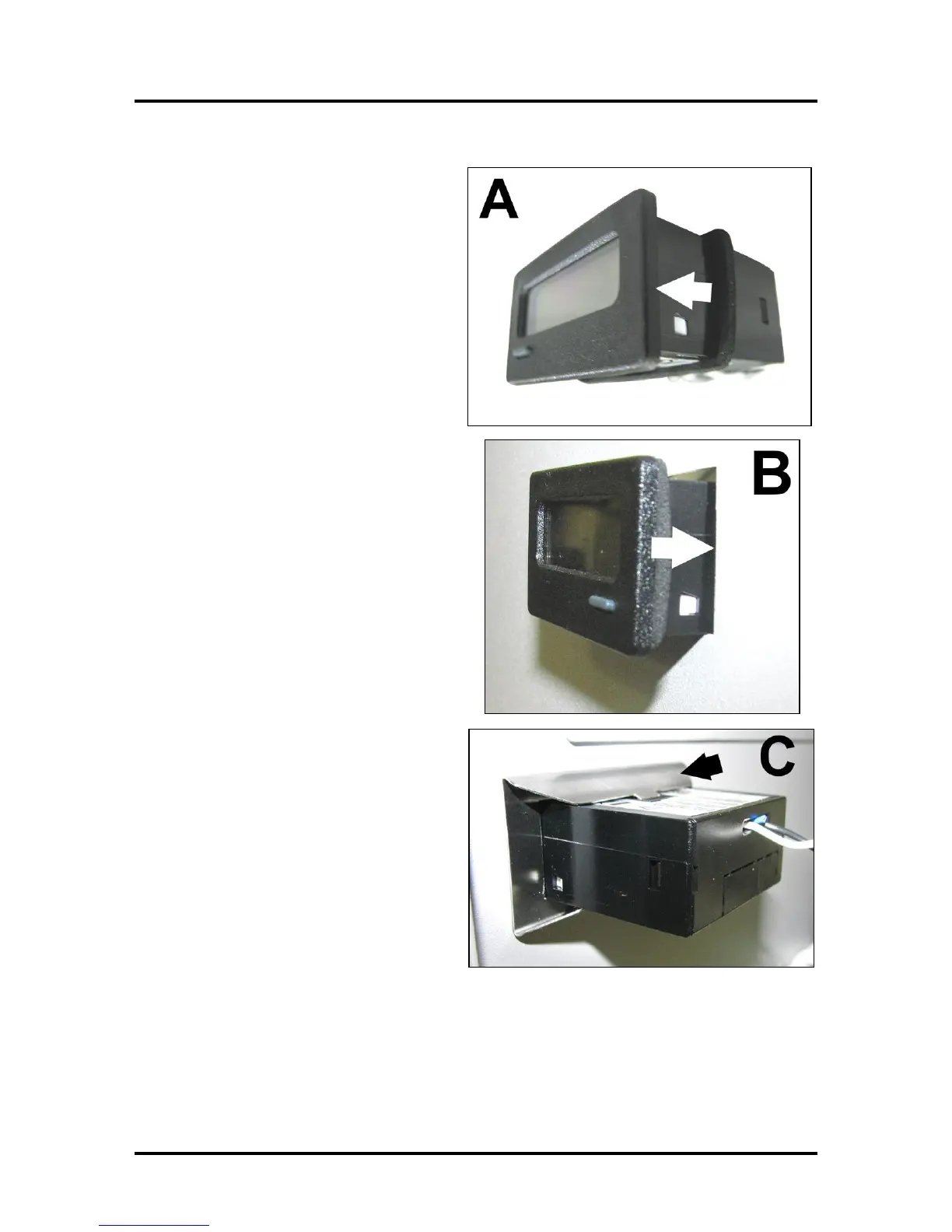

6. To install the Non-resettable Digital Counter:
[A] Fit the gasket onto the Counter.
[B] Insert the Counter through the front
side of the Rear Cover.
[C] Slide the Mounting Bracket over the
wiring harness and back end of Counter
until the Bracket fit snugly against the
inner side of the Rear Cover.
7. Route and secure the Counter wiring
harness back through the three wire
clamps.
8. Connect the wiring harness to the
Interface terminal.
9. Reinstall the Rear Cover and
Non-operator Side Cover.
To Next Page
