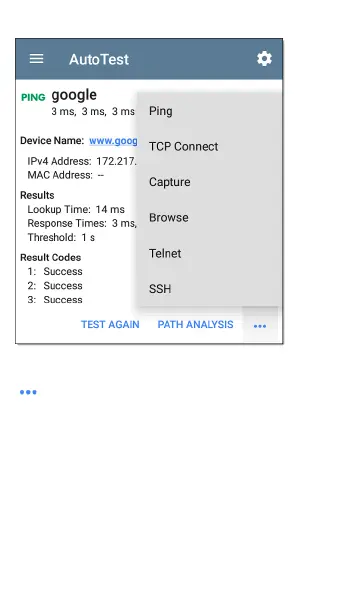

Tap
blue
links
or
the
blue
action
overflow
icon
at
the
bottom
of
the
test
results
screens
to
run
the
Ping
TEST
AGAIN
,
open
another
testing
app,
Browse
to
the
Ping
target
address
in
your
web
browser,
or
start
a
Telnet
or
SSH
session.
AutoTest
App
and
Profiles
349
348
350
Table of Contents
Table of Contents
2
ES Nxg Controlled Edition
15
Contact Us
16
Introduction
17
How to Use this Guide
18
Differences between Models
22
Buttons and Ports
24
Charging and Power
29
Poe Charging
29
Safety and Maintenance
32
Legal Notification
35
Home and System Interface
36
Home Screen
37
Navigating the System
39
System Status Bar and Notifications
43
Notification Panel
43
Apps Screen and Store
46
Device Settings
50
Quick Settings Panel
51
Connecting to Wi-Fi
55
Captive Portals
58
Configuring for Enterprise Security
59
Sharing
68
Sharing a Screenshot
71
Changing the Device Language
73
Etherscope Nxg Controlled Edition Settings and Tools
75
Navigation Drawer
76
About Screen
78
Exporting Logs
78
Exporting Settings for All Apps
79
Test and Management Ports
80
Test Ports
82
Selecting Ports
87
Test and Port Status Notifications
90
Test Port Notifications
91
Management Port Notifications
93
Discovery Notifications
94
Poe
95
Vnc/Link-Live Remote
95
Etherscope Nxg Controlled Edition General Settings
96
Wi-Fi
97
Wired
102
Management
104
Preferences
108
Trending Graphs
109
Common Icons
113
Common Tools
116
Web Browser/Chromium
116
Telnet/Ssh
116
Flashlight
117
Software Management
118
Managing Files
119
Files Application
119
How to Move or Copy a File
121
Using a Micro SD Card
122
Using a USB Drive
123
Ejecting Storage Media
125
Updating Software
128
Remote Access
133
Using VNC
135
Using Link-Live Remote
135
Managing Netally App Settings
137
Resetting Testing App Defaults
137
Saving App Settings and Configurations
141
Importing and Exporting Settings
145
Importing and Exporting Settings for All Apps
156
Resetting Etherscope Nxg Controlled Edition Factory Defaults
158
Controlled Edition Operation
161
Introduction to Etherscope Nxg Controlled Edition
162
Controlling Feature Access
170
Permanently Disabling Features
176
Changing the Administrative Password183
183
Etherscope Nxg Controlled Edition Testing Applications
186
Autotest App and Profiles
187
Autotest Overview
189
Managing Profiles and Profile Groups
192
Factory Default Profiles
192
Adding New Profiles
194
Profile Groups
200
Creating New Profile Groups
205
Importing and Exporting Autotest Profiles
208
Main Autotest Screen
209
Periodic Autotest
211
Periodic Autotest Settings
211
Running Periodic Autotest
213
Wired Autotest Profiles
216
Wired Profile Results
221
Poe Test Results
223
Wired Link Test Results
226
802.1X Test Results
232
VLAN Test Results
234
Switch Test Results
237
Wired Profile FAB
244
Wired Profile Settings
248
Poe Test Settings
249
Wired Connection Settings
252
VLAN Settings
259
Stop after
261
HTTP Proxy
262
Wi-Fi Autotest Profiles
264
Wi-Fi Profile Results
268
Wi-Fi Link Test Results
271
Connect Log
281
Channel Test Results
282
Wi-Fi Profile Settings
292
Wi-Fi Connection Settings
294
Advanced (Wi-Fi Connection) Settings
306
Channel Test Settings
309
HTTP Proxy
312
DHCP, DNS, and Gateway Tests
314
DHCP or Static IP Test
315
Test Targets for Autotests
336
Adding and Managing Test Targets
337
Autotest TCP Connect Test
350
Air Quality Autotest Profiles
375
Air Quality Profile Results
377
Air Quality Profile FAB
382
Air Quality Profile Settings
383
Ping/Tcp Test App
389
Ping/Tcp Settings
390
Populating Ping/Tcp from Another
390
Configuring Ping/Tcp Settings Manually
393
Running Ping/Tcp Tests
396
Capture App
400
Capture Settings
401
Running and Viewing Captures
407
Discovery App
413
Introduction to Discovery
415
Main Discovery List Screen
417
Searching the Discovery List
420
Filtering the Discovery List
421
Sorting the Discovery List
425
Security Auditing - Batch Authorization
427
Refreshing Discovery
432
Uploading Results to Link-Live
433
Discovery Details Screens
435
Top Details Card
437
Lower Cards in Device Details
443
Problems
445
Addresses
446
TCP Port Scan
448
Vlans
450
Interfaces
451
Snmp
457
Connected Devices
458
Resources
459
Ssids
460
Discovery App Floating Action Menu
462
Device Types
467
Routers
468
Switches
469
Unknown Switches
470
Network Servers
471
Hypervisors
472
Virtual Machines
473
Wi-Fi Controllers
474
Access Points (Aps)
475
Wi-Fi Clients
476
Voip Phones
477
Printers
478
SNMP Agents
479
Network Tools
480
Hosts/Clients
481
Device Names and Authorization
484
Assigning a Name and Authorization to a Device
484
Discovery Settings
497
Active Discovery Ports
500
Extended Ranges
501
ARP Sweep Rate
505
Refresh Interval
506
SNMP Configuration
506
Auto AP Grouping Rules
518
Problem Settings
524
TCP Port Scan Settings
527
Wi-Fi Analysis App
530
Wi-Fi Analysis and Discovery
532
Wi-Fi App List Screens
533
Wi-Fi App List Screens
534
Filtering in the Wi-Fi App
538
Sorting in the Wi-Fi App
543
Clearing All Problems
545
Setting Authorization
546
Uploading Results to Link-Live
547
Wi-Fi Details Screens
549
Wi-Fi Problems Screen
552
RF and Traffic Statistics Overview
554
Locating Wi-Fi Devices
559
Channels Map
570
Map and Map 6E Tabs
571
Channels
579
Ssids
584
Aps
589
Bssids
593
Clients
605
Bluetooth
614
Path Analysis App
619
Introduction to Path Analysis
620
Path Analysis Settings
621
Populating Path Analysis from Another App
621
Configuring Path Analysis Manually
621
Running Path Analysis
624
Path Analysis Results and Source Product Cards
626
Layer 3 Hops
630
Layer 2 Devices
635
Uploading Results to Link-Live
641
Airmapper™ App
643
Airmapper Settings
644
Configuring an Airmapper Survey
645
Collecting Airmapper Data
654
Starting a New Survey
665
Spectrum Test App
667
Using the Spectrum Views
668
Uploading Results to Link-Live
675
Spectrum Settings
677
Changing Spectrum Views
677
Saving Settings
677
Changing Spectrum Settings
678
Performance Test App
681
Introduction to Performance Testing
683
Performance Test Settings
685
Saving Custom Performance Tests
686
Configuring the Source Etherscope Nxg Controlled Edition
691
Configuring Performance Endpoints
709
Onetouch 10G Performance Peer
710
Linkrunner G2 Reflector
712
Linkrunner at Reflector
714
NPT Reflector Software
716
Running a Performance Test
718
Performance Test Results
719
Performance Service Detailed Results
721
Uploading Results to Link-Live
729
Running Etherscope Nxg Controlled Edition as a Performance Peer
733
Iperf Test App
738
Iperf Settings
740
Saving Custom Iperf Settings
740
Test Accessories in Discovery
741
Configuring Iperf Settings
744
Running an Iperf Test
748
Uploading Results to Link-Live
752
LANBERT™ Test App
754
LANBERT Settings
755
Configuring LANBERT Generator Settings
755
Configuring LANBERT Loopback Settings
760
Running a LANBERT Test
761
Uploading Results to Link-Live
768
Link-Live Cloud Service
771
Getting Started in Link-Live Cloud Service
773
Claiming the Unit
773
After Claiming
775
Unclaiming
776
Allycare Code
777
Private Link-Live Settings
778
Link-Live App Features
779
Saving Locally Only
783
Job Comment
785
Link-Live and Testing Apps
788
Link-Live Sharing Screens
789
Sharing a Text File to Link-Live
792
Cable Test App
795
Cable Test Settings
796
Running Cable Test
797
Open Cable TDR Testing
798
Terminated Wireview Testing
801
Toning Function
803
Uploading Results to Link-Live
804
Specifications and Compliance
805
Specifications
806
General
806
Wireless
807
Environmental Specifications
815
Certifications and Compliance
816
Other manuals for netAlly ETHERSCOPE nXG
