netAlly ETHERSCOPE nXG User Manual

To start the cable test, tap START at the top
right of the Cable Test app screen.
Open Cable TDR Testing
EtherScope nXG Controlled Edition can measure
the length of a cable and detect some faults by
measuring the electrical reflections of the cable
using Time Domain Reflectometry (TDR).

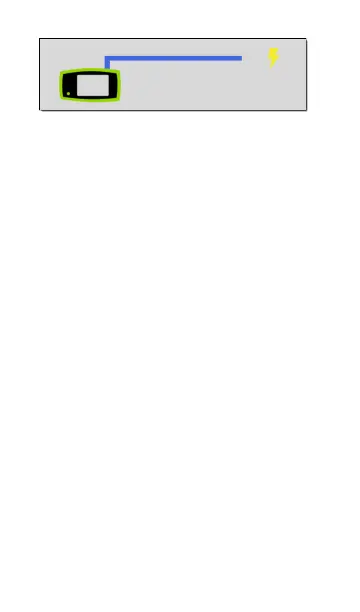

Connect an open cable (unterminated) into the
RJ-45 port on the left side of the Product unit to
measure its length and view any shorts, opens,
or splits.
Cable Test App
798
