Resources

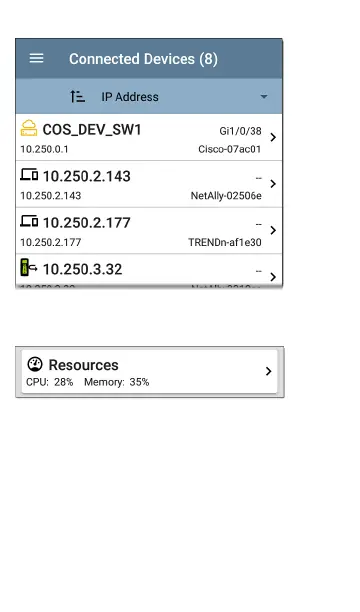

The
Resources
card
shows
the
percentages
of
CPU,
memory,
and
storage
usage
on
the
device.
This
information
is
gathered
via
SNMP.
Tap
the
card
to
view
current
and
maximum
resource
utilization
measurements.
Discovery
App
459
458
460
