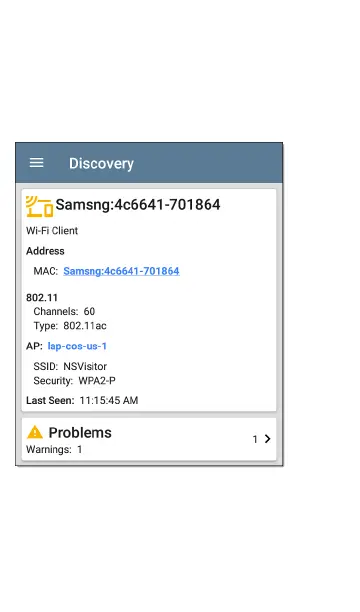

Wi-Fi Clients

Wireless clients are discovered through wireless

packet analysis and SNMP queries with a linked

connection through a management or test port.

See also Clients in the Wi-Fi analysis app.
