The switch cards display the In and Out Interface
IDs, VLAN ID, and the link speed and duplex (if
detected) of the interfaces.
Tapping a Layer 2 card opens a Details screen
for the device.

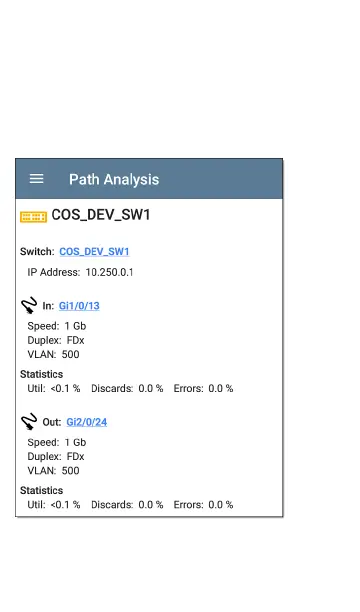

A Layer 2 Details screen displays the device
name and IP address at the top.
Path Analysis App
637
