3.7 Overview of Parts and Features – Terminal
Top View
Back View
Side View

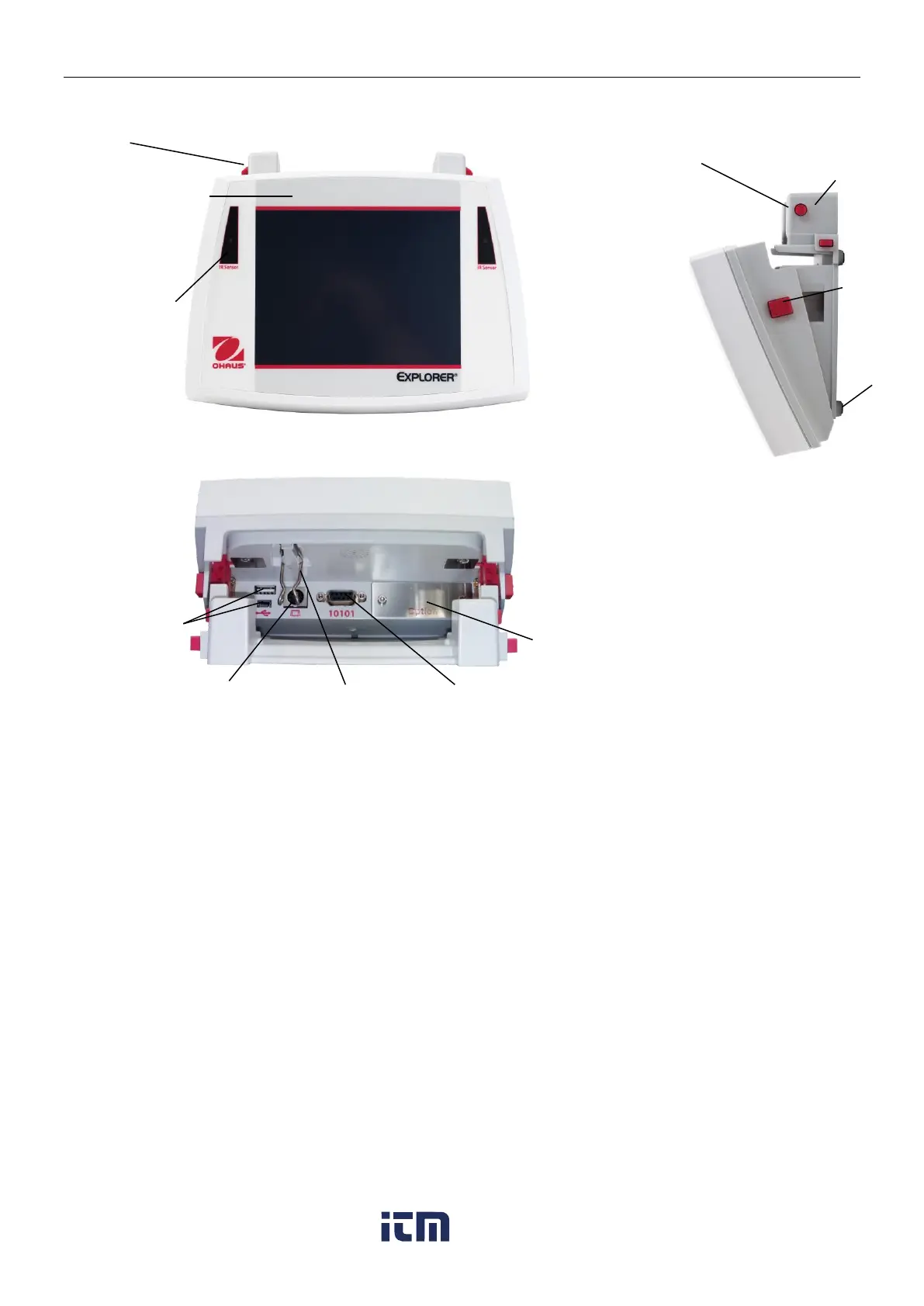

Figure 3-5. Explorer Terminal
Hooks
(to attach
to base)
Capacity sticker
(Approved models
only)
Touchless
Sensors with
Indicator Lights
Terminal
Bracket
Terminal
Release
Buttons
Angular
Adjust
Buttons
Foot
USB Device
Connections
Terminal
Cable
(from Base)
Terminal
Cable Clamp
RS232
Connection
Option
Port
