EN-44 EXPLORER BALANCES
4.4.5 Check Weighing – Nominal/Percent Tolerance Mode
With this feature you can establish a Target or Nominal weight value and pre-set tolerance in percent.
To enable this feature, enter the Setup menu.
Change the mode to Nominal, % Tolerance. The Check Weighing options screen returns.
Press Done to begin Check Weighing.

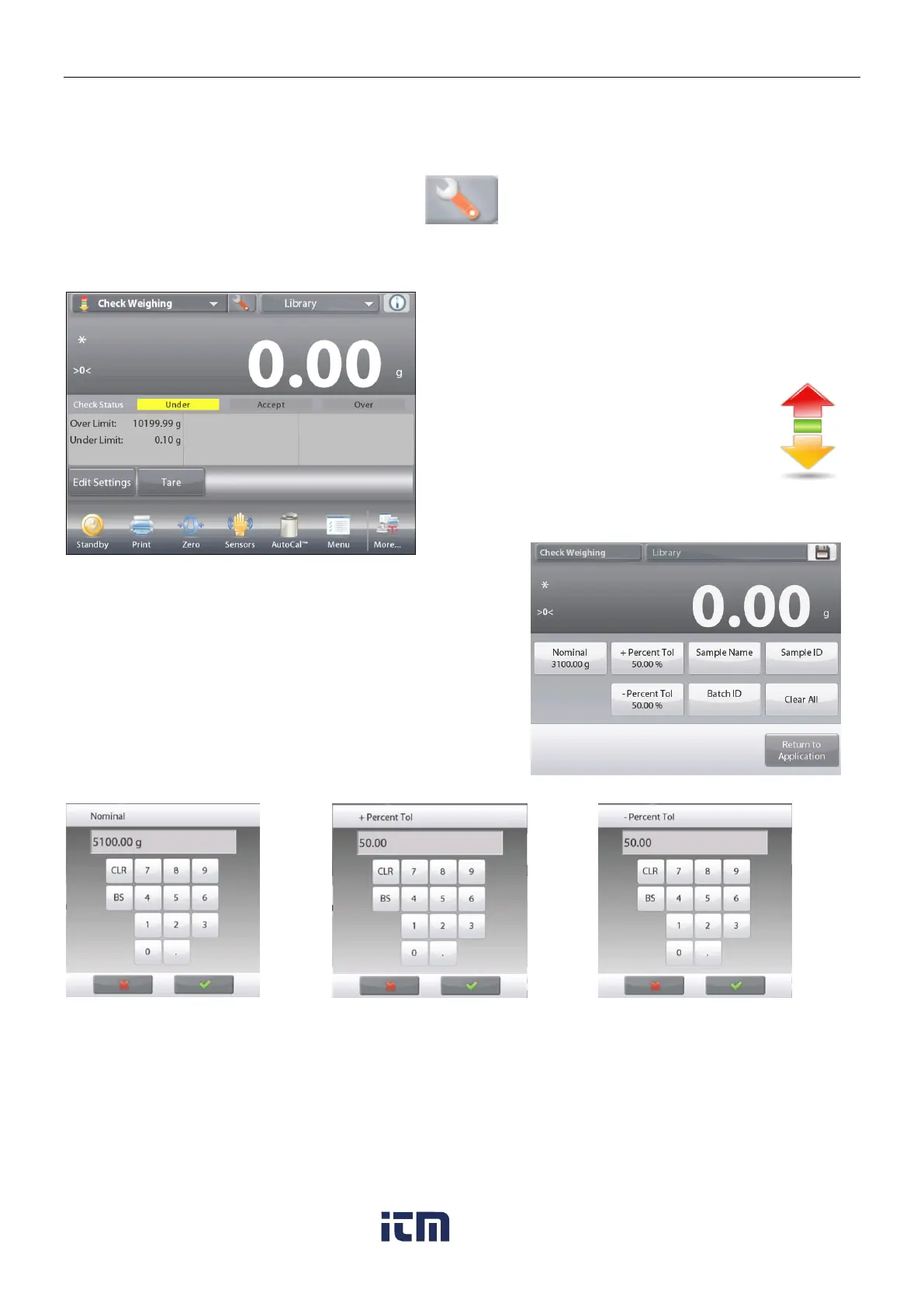

The CHECK WEIGHING – Nominal/Percent Tolerance
home screen
Main Display Line
Second Display Line (not shown)
Reference Fields
Application Buttons
Application Icon
Functions
To use this mode, touch Edit Settings to set the Target
Weight, and Upper and Lower Tolerance values (in percent).
(See keyboards below.)
Press Return to Application when settings are complete.
Note: please refer to section 4.1.1 for details about setting
Sample Name, Sample ID, Batch ID and Clear All.
