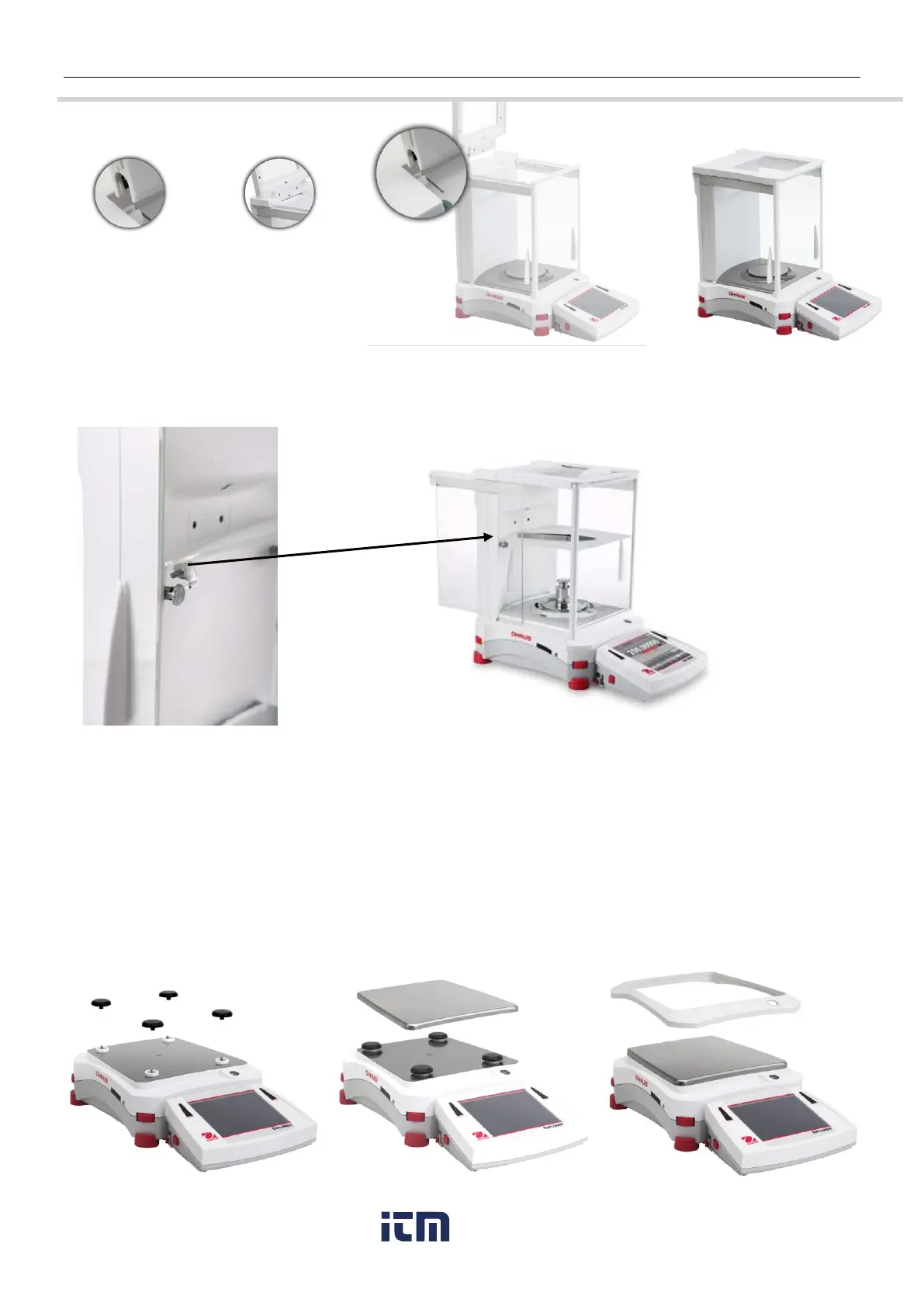

Insert Top Door’s hooked ends in grooved pegs. Press gently to seat. Check for smooth movement. Close door.
2.2.7 Installing the Glass Shelf (on Semi-Micro models)
Align and press down the shelf on the two supporting pegs.
Note: If the sliding doors and top lid have been installed, first open the sliding glass doors on both sides and open
the top lid to make space for the glass shelf.
2.2.8 Installing the Weighing Pan & Wind Shield – Non-Draft Shield Models
Note: Assembly instructions also apply to models with the suffix M or N.
1. Place the four Support Caps onto the Balance as shown.
2. Place the Weighing Pan on the Support Caps
3. Place the Wind Shield onto the Balance as shown.
Note: The balance can be operated without the Wind Shield. However, depending on ambient conditions the
displayed results may be slightly less stable.
