Diagnostic aids 3-9

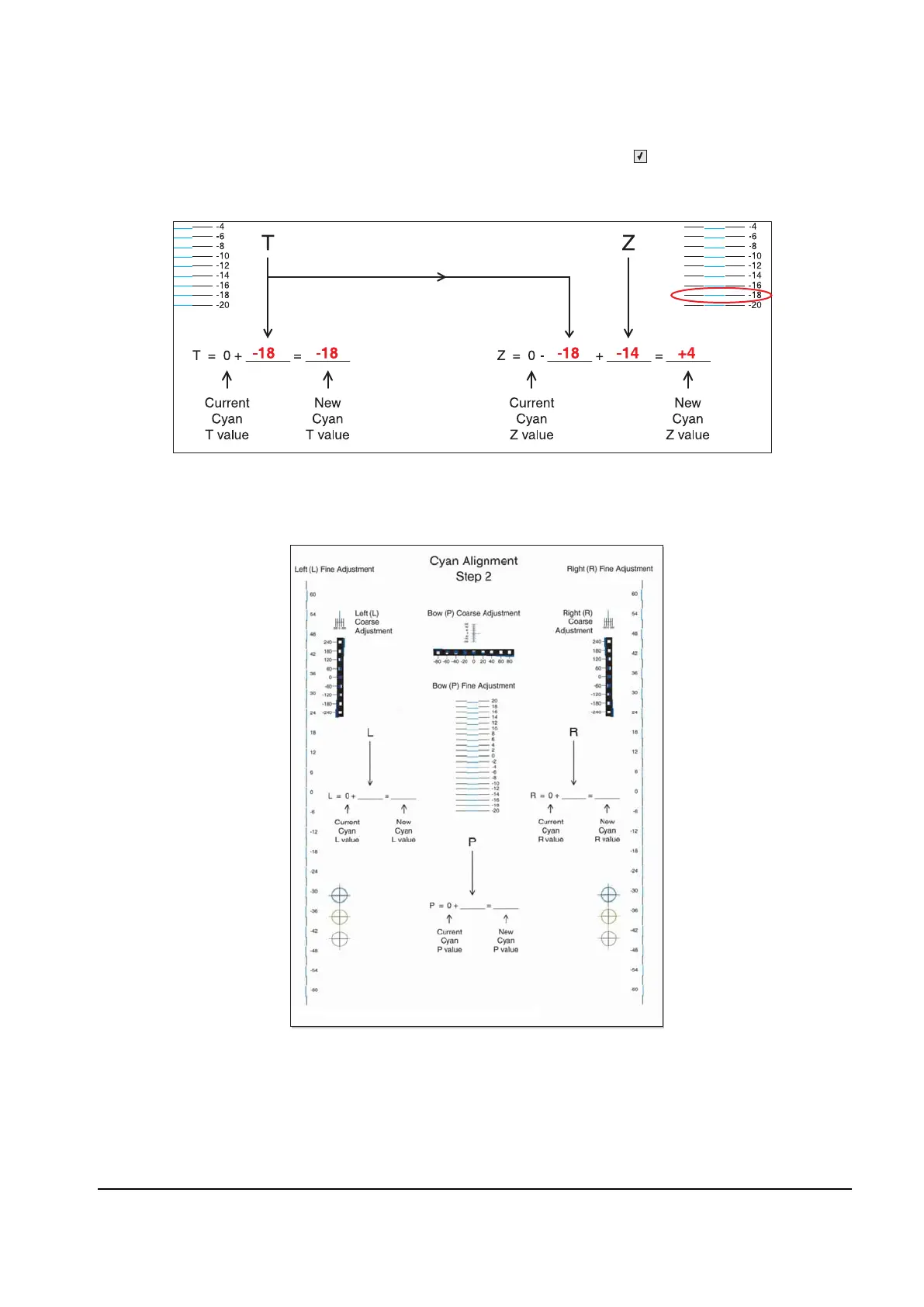

7. Select the Skew value in the same way, enter the value, press Select ( ), and print the Quick Test to see

if the observed values and the current values are the same.

8. On the second page of the latest Quick Test you printed, proceed to Step 2; adjust the left, right,and bow

settings. Continue printing the Quick Test after each adjustment to verify your settings.

9. Continue on to the other two colors in the same manner.

Y112730-2
