Diagnostic aids 3-47

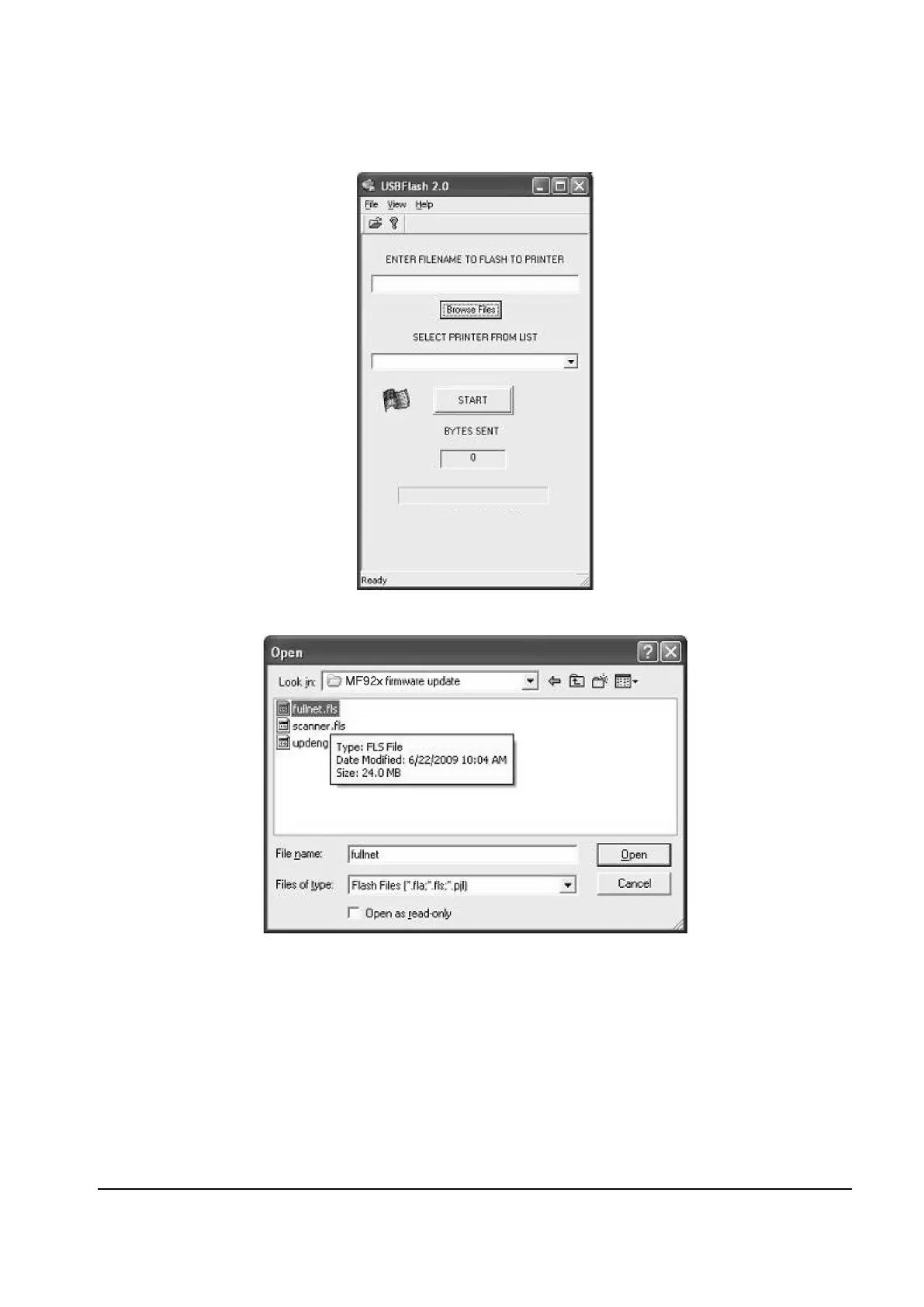

5. Open the USBFlash utility. This window will display.

6. Click the Browse Files button. The file browse dialog displays.

7. In the file browse dialog, browse to the fullnet.fls (also called 1.fls) file. The fullnet.fls file is the RIP

firmware file.

Warning: It is critical that the RIP firmware gets updated first. Failure to do so, can render the printer

inoperable.

8. Click Open. The file browse dialog will close.

Y112730-2
