Repair information 4-75

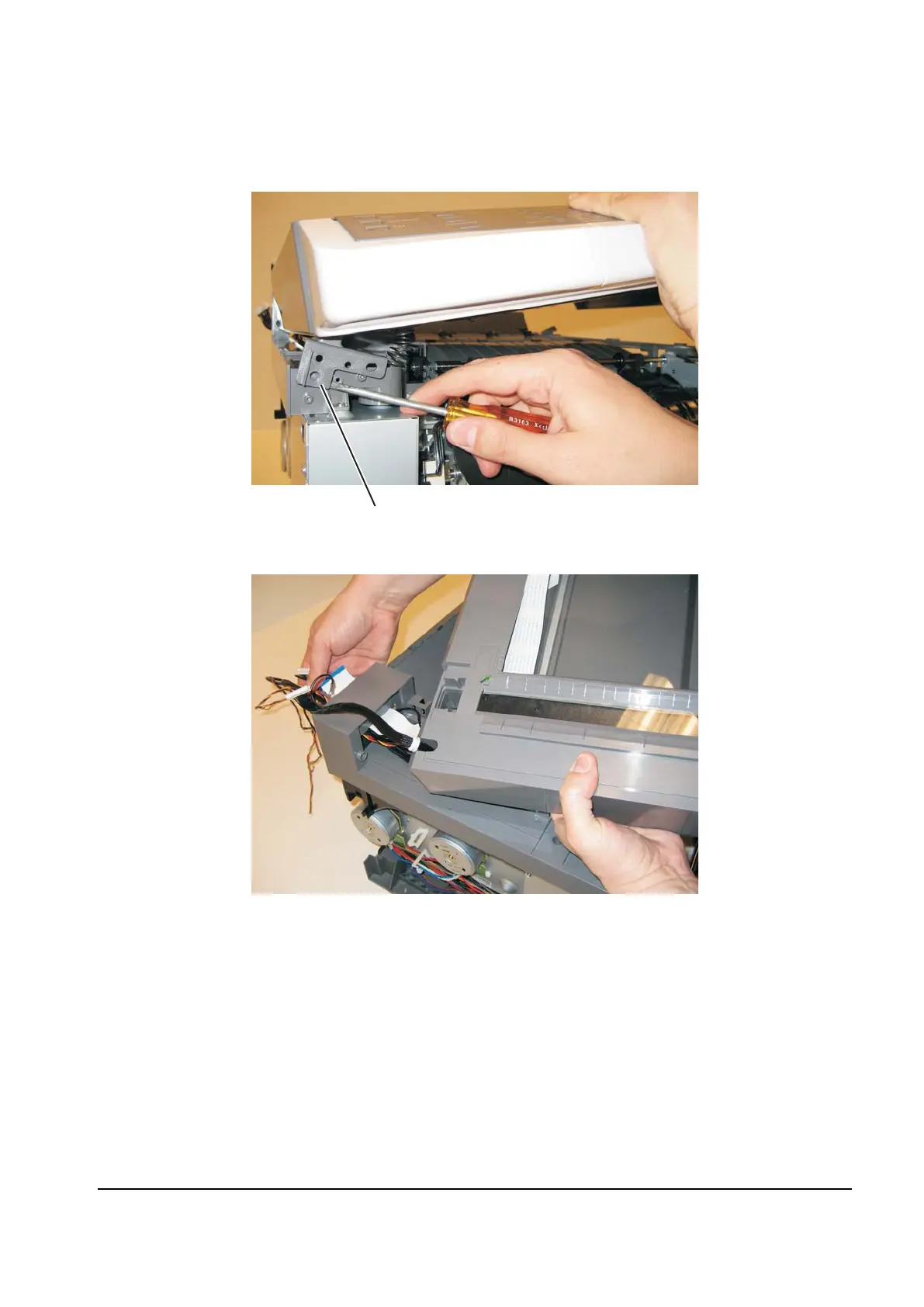

17. Gently push the front flatbed hinge (G) towards the front of the top cover to disengage it from the top cover
guide Pin.
18.Carefully pull the flatbed unit towards the front of the MFP while using your other hand to route the cables
through the top cover.
19.Remove the CCD ribbon route cover and homing guide attachment.
20.Disconnect the op panel ground termination from the LVPS.
Note: This completes the removal of the flatbed assembly from the print engine. The removals for the
FRUs attached to the flatbed are covered under different removal procedures. In addition to the FRUs, the
following steps illustrate the additional parts that need to be removed from the old flatbed and transferred
to the new flatbed.
Y112730-2
