Repair information 4-77

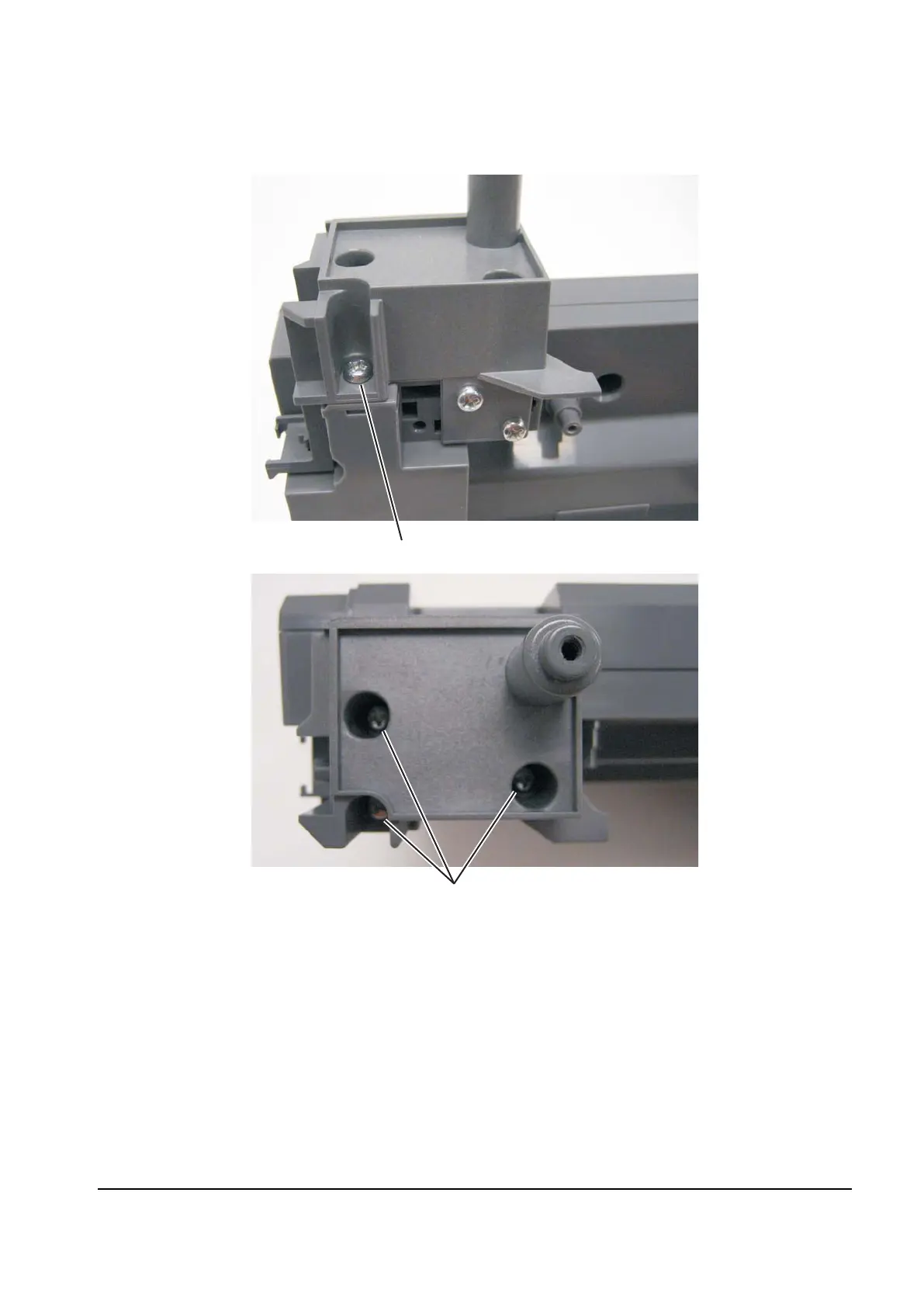

24. Remove the screws (K) securing the flatbed link to the flatbed.

25. Remove the flatbed link; it will be used on the replacement flatbed unit.

Note: The redrive, cable covers, operator panel assembly, scanner flatbed guides, op panel cable, and

USB cable need to be transferred to the replacement flatbed unit.

Note: After replacing the flatbed unit, you will need to perform the flatbed registration procedure. See

“Scanner Manual Registration” on page 3-35.
