4-5 Checking the Camera Connections: [Camera Connection]
4
4-5 Checking the Camera Connections:
[Camera Connection]
You can check whether a Camera is connected. There are no settings.
1 In the Main Window, select [System settings] − [Camera] − [Camera Connection] from the [Tool]
menu.

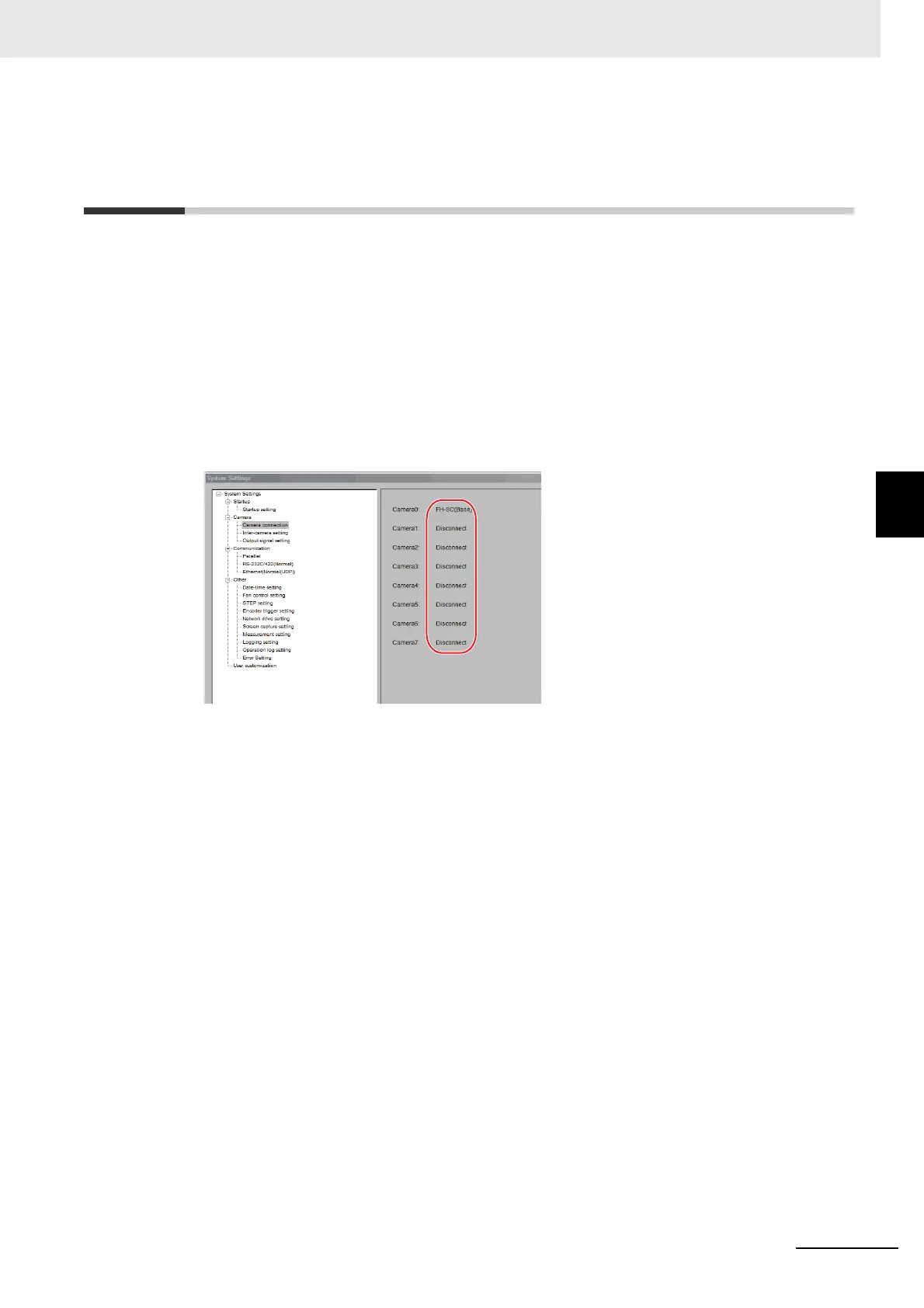

The Camera Connection Settings View is displayed.
2 Check the connection status.
If a Camera is connected, the model name of the connected Camera will appear next to the
Camera number.
If the [Disconnect] is displayed even though a Camera is connected, there could be a failure or
a disconnected line. Check the physical connection.
3 Click the [Close] Button.
