8 Setting Windows
8 - 4
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)

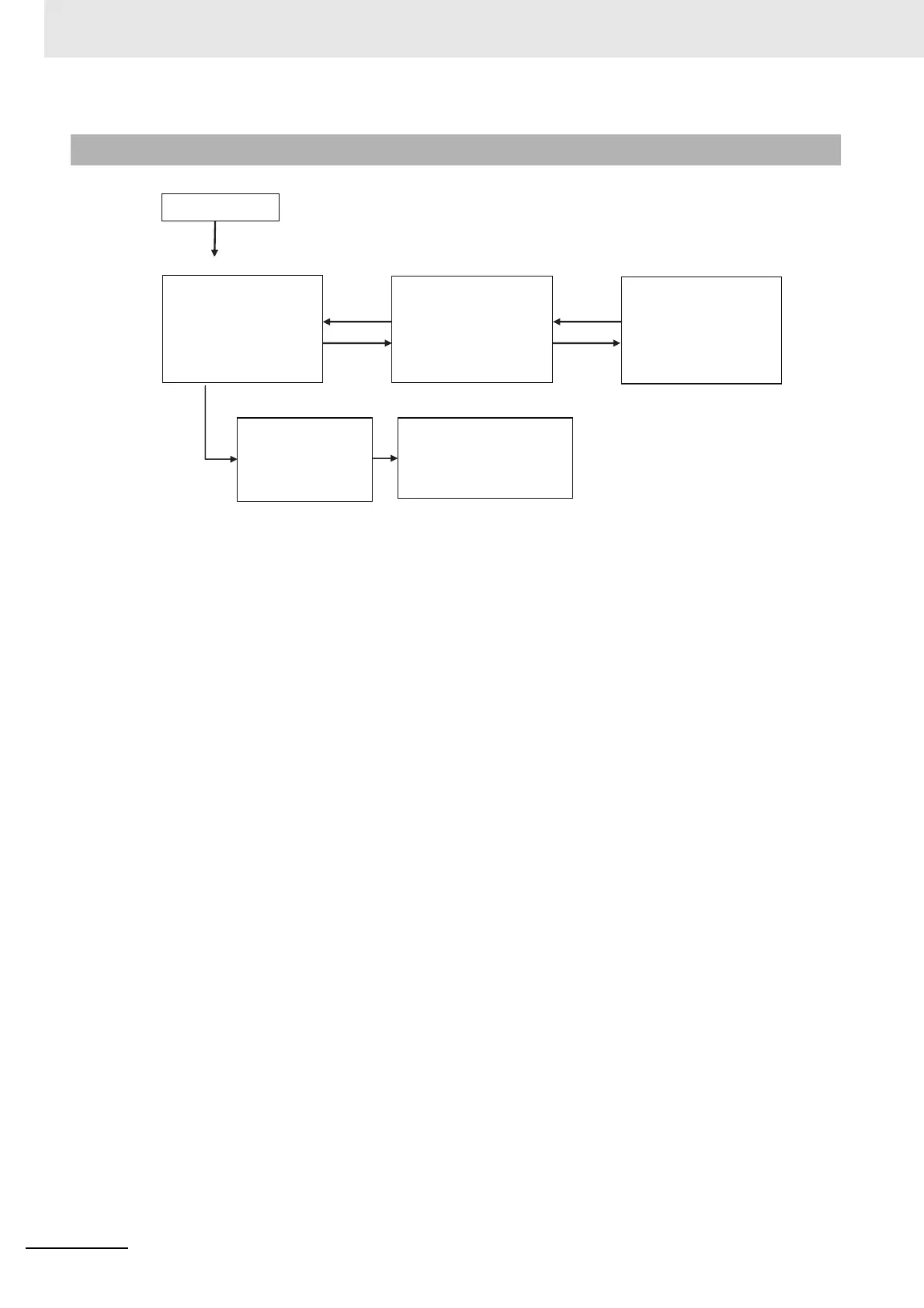

8-1-2 Overview of Window Navigation
Startup
Flow Editing
Unit Setting Mode
* Select as follows: [System settings] − [Startup setting] − [Basic] tab − [Startup layout].
Default: [Layout 0] (both local and remote)
Layout
switching
Layout
switching
Layout 0
(default:
adjustment window)
Layout 1
(default: run window)
Edit Flow Window
Properties Dialog Box
Layouts 2 to 7
(You can create these
windows in Layout
Modification Mode)
Refer to Edit Flow
Window on page 8-8.
Startup Layout*
