9 Saving/Loading Data
9 - 48
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
9-9 Saving Image Files to a RAMDisk or
an External Storage Device [Image
File Save]

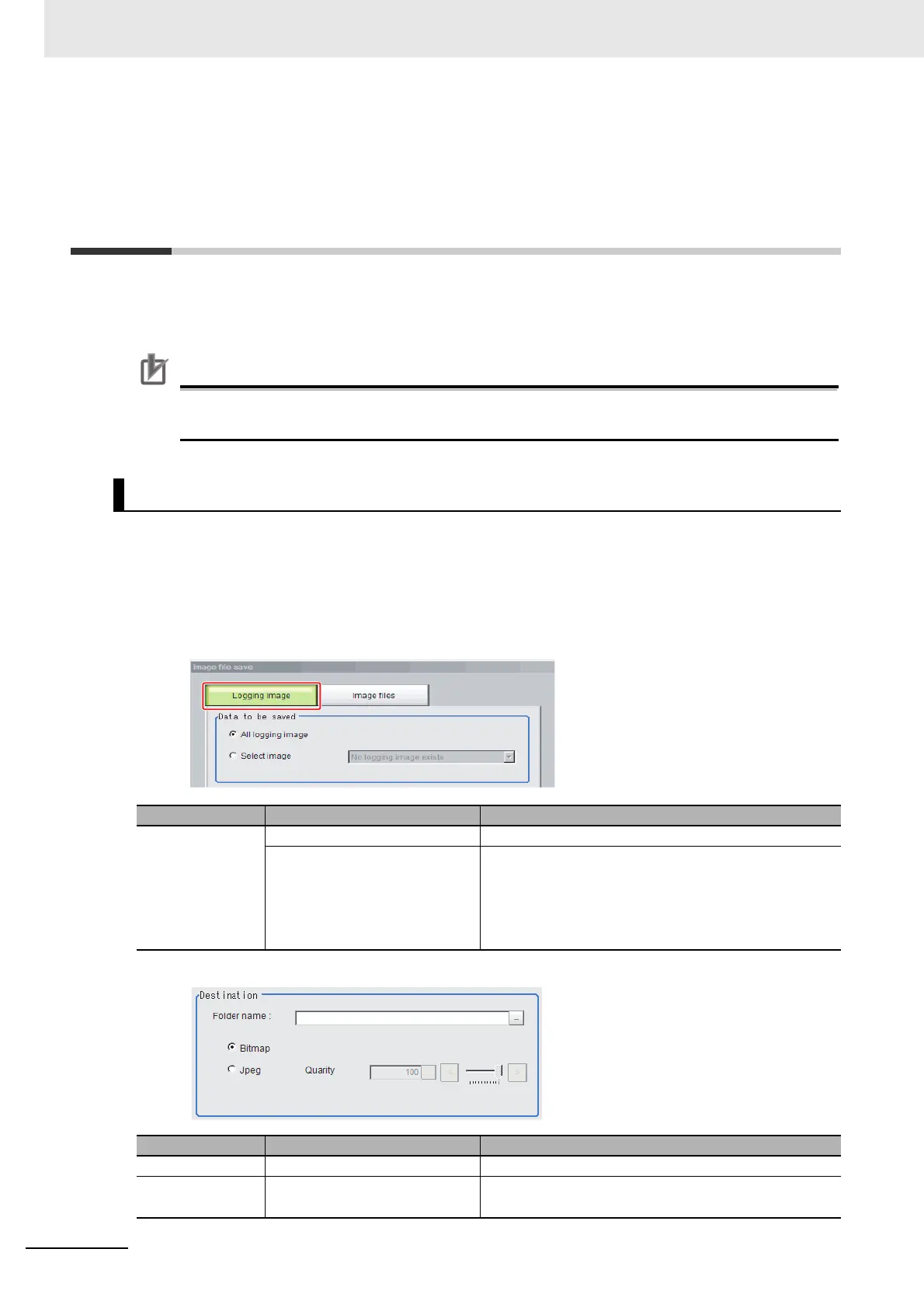

This section describes how to save logged images and image files that are saved in the Controller to a
RAM disk or external memory device in the Controller. The storage format (bitmap or Jpeg) can be
specified when the images are saved.
Important
During saving, do not restart, turn OFF the power supply, or remove the external storage
device. The data may be corrupted.
1 When saving data to external memory, insert an external storage device into the Sensor Con-
troller.
2 In the Main Window, select [Image file save] from the [Tool] menu.
The [Image file save] dialog box is displayed.
3 Click [Logging image] and select the logged image to save.
4 Specify the destination folder name and file type.
Saving Logging Images
Setting item Setting value [Factory default] Description
Data to be saved [All logging image] All logged images are saved.
Select image The selected logged images are saved.
Click [] to select the image to save.
When [Latest measurement] - [logging image] is
selected, the save file name will be LoggingIm-
age000.ifz.
Setting item Setting value [Factory default] Description
Folder name --- Specify the destination folder name.
Format • [Bitmap]
•Jpeg
Select the image format in which to save the image.
