Window part that displays on the main screen as a button to set parameters such as processing unit.
This comprises the following elements.
• [Settings button]
Details that can be set are as follows.

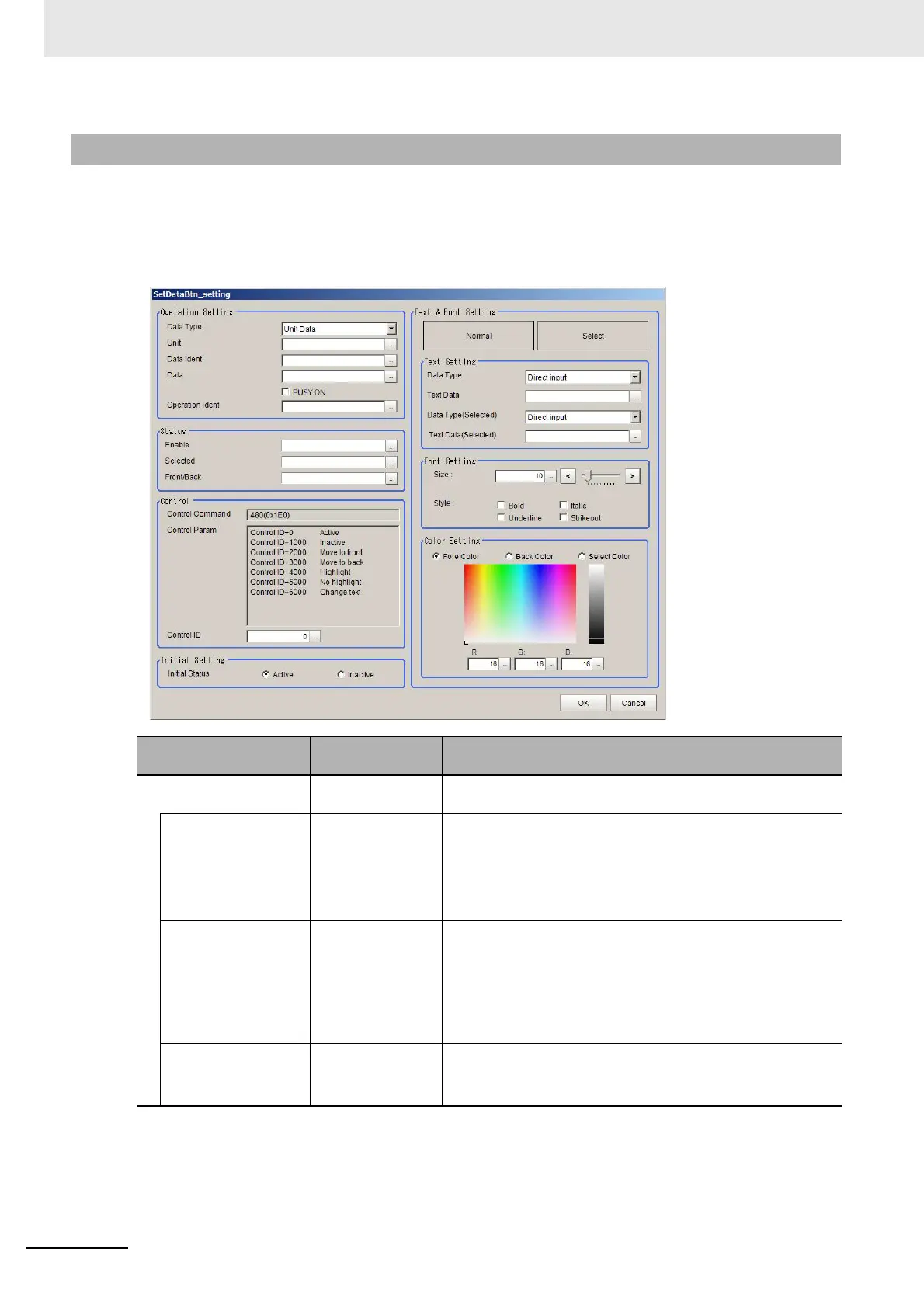

8-3-23 Data Settings Button Window (MDI_SetDataBtn.dll)
Setting item
Setting value
[Factory default]
Description
Operation Setting Configures the settings related to data for the data setting
objects.
Data Type • [Unit data]
• Scene variable
• Global Data
• System Data
• System variable
Selects the data type for the data setting object.
Unit [Blank] This item is available when [Unit Data] is selected in [Data
Type].
Sets the unit to set data using a unit number or unit label char-
acter string using up to 32 characters.
Only single-byte alphanumeric characters as well as “_&#$@”
can be input.
Data ident 0 • [PanDA] This item is available when [System Data] is selected in [Data
Type].
Selects the identifier 0 for the system data.
