2-2 Support for a Variety of Scenes and
Measurement Lines
You can have more than one setting for a measurement flow, depending on the inspections. This is
called a scene and you can set up to 128 scenes. Refer to 5-1 What Is a Scene? on page 5-2.
You can also combine more than one scene into a scene group. Management of scenes by scene
groups increases the number of scenes that you can handle. Refer to 7-1 What Is a Scene Group? on
page 7-2.

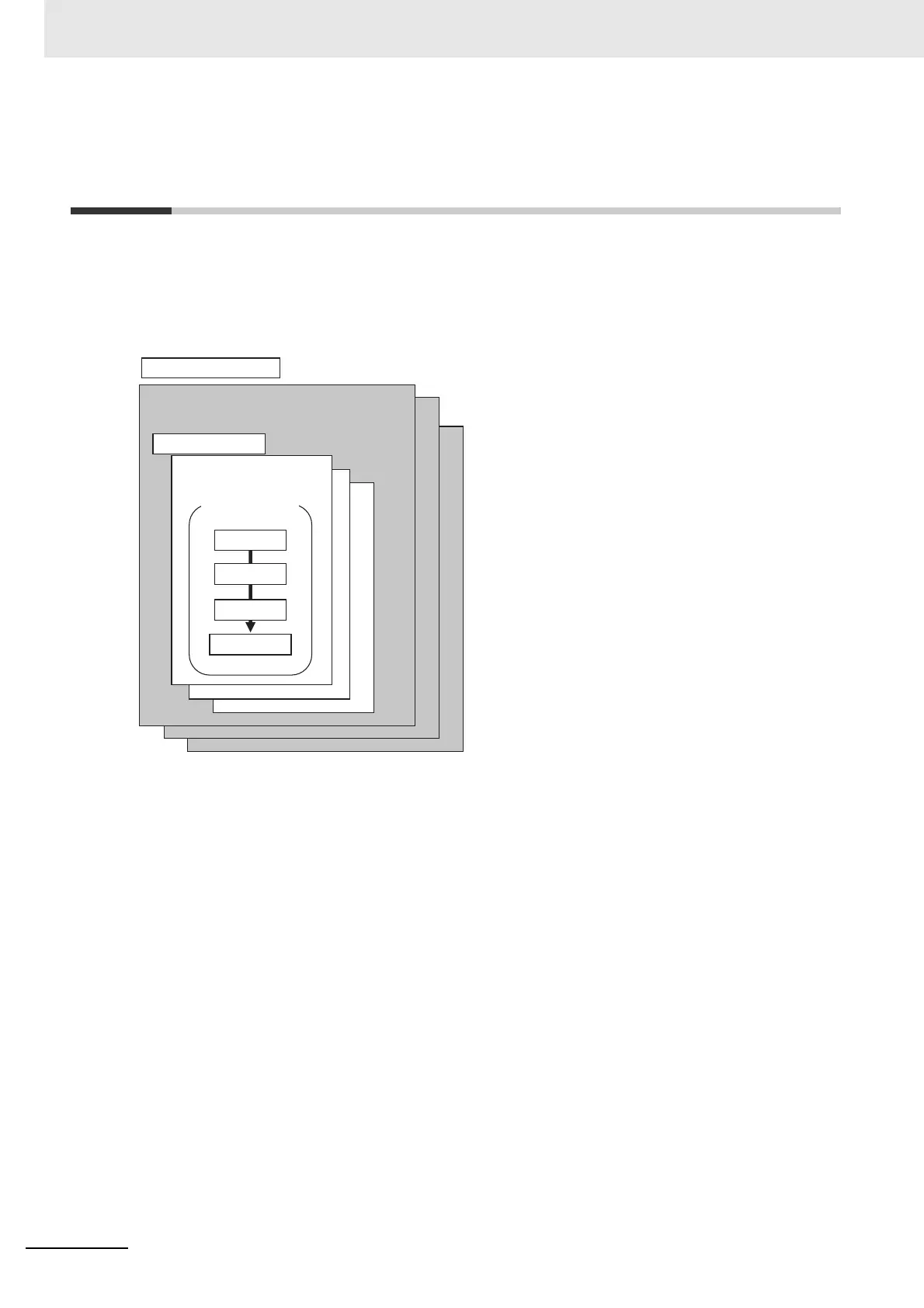

Image Input
Defect
Search
Measurement flow
Output Unit
Scene groups (0 to 31)
Scene group 0
Scenes (0 to 127)
Scene 0
