2-2 Support for a Variety of Scenes and
Measurement Lines
2

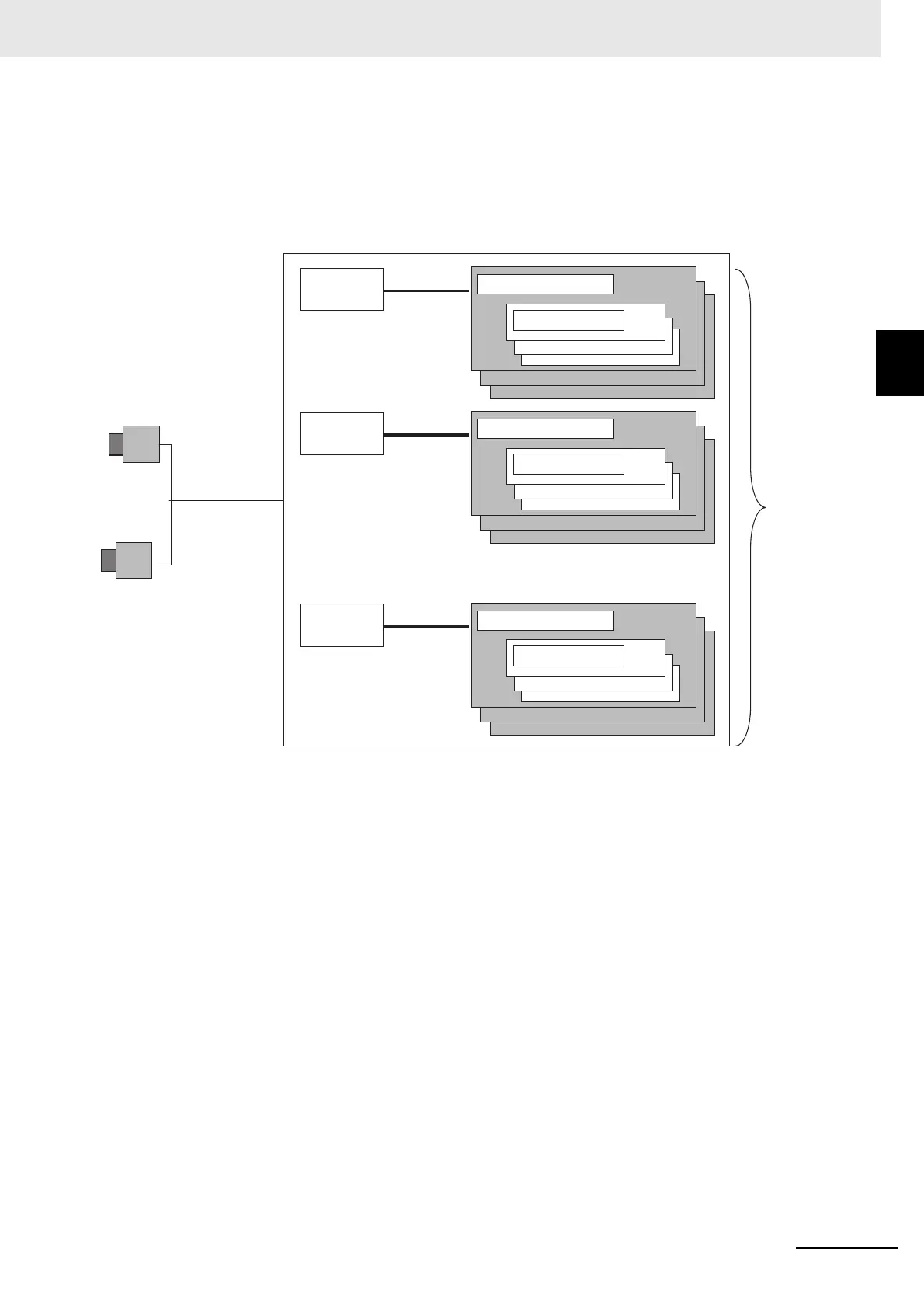

If you have more than one measurement line, the FH allows you to selectively execute up to eight mea-
surement lines. This allows you to maintain settings for the scenes and scene groups for every line from
0 to 7.
You can connect up to eight Cameras to the FH, (four for the FZ5), and selectively control each Cam-
era. Refer to Multi-line Random-trigger Mode on page 4-19.
Camera
......
......
You can
create
settings for
up to 8 lines.
You can connect a
total of eight
Cameras for all
lines combined.
FH
C
ontroller
Line 0
Line 1
Line 7
Scene groups (0 to 31)
Scene groups (0 to 31)
Scene groups (0 to 31)
Scenes (0 to 127)
Scenes (0 to 127)
Scenes (0 to 127)
