9-11 Saving/Loading Layout Settings
[Layout Upload, Download Tool]
You can save the layout of the Main Window in a file and load the settings.
Additional Information
• This tool cannot be used with remote operation from a PC.
• With this tool, layouts 0 to 8 are collectively saved to or loaded from a file.
1 In the Main Window, select [Layout download and upload tools] from the [Tool] menu.
2 Click [Download] and specify the destination folder and file name.
3 Click [OK].
The data will be saved to the save destination.

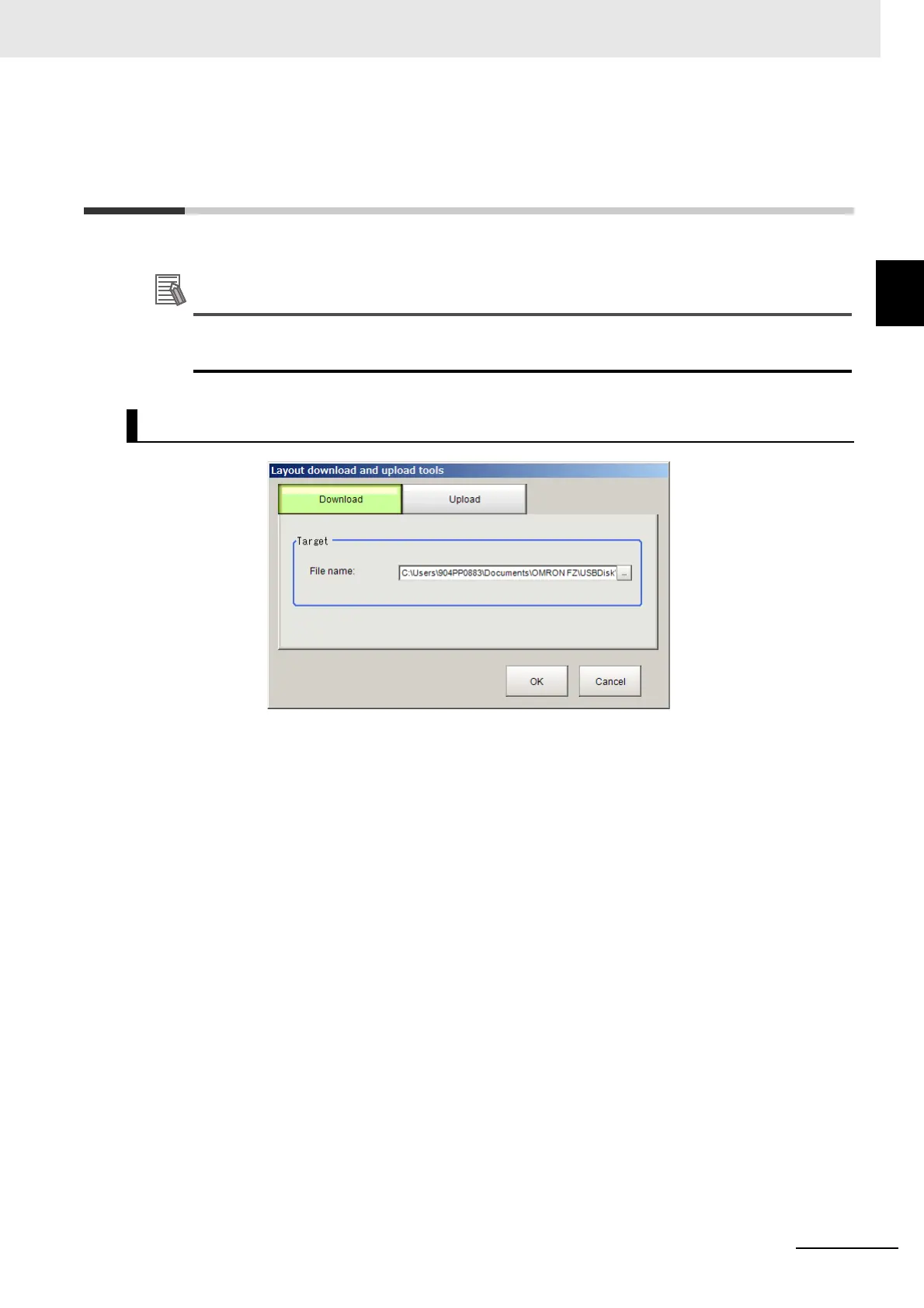

Saving the Layout Settings for the Main Window to a File
