4 - 29
4 Setting the Controller
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
4-4 Setting Operation Mode [Startup Settings]
4
4-4-2 Parallel Processing
This function is exclusively for an FH series/FZ5-800/1100/1200 series.
There are two types of processing in the Parallel processing: Automatic parallelization and Manual par-
allelization.
The automatic parallelization automatically parallelize a measurement flow if [Parallel Execute] under
[Operation mode setting] is turned ON.
The manual parallelization allows you to use the processing items for the parallel processings to freely
edit a measurement flow after automatic parallelization. If you use the manual parallelization to sepa-
rate a part of the measurement flow into multiple tasks and process each of these tasks in parallel
reduces the processing time of the measurements.
Parallel processing is available when [Parallel Execute] is set to ON in the [Operation mode setting].
If you turn ON [Parallel Execute] under [Operation mode setting], the automatic parallelization automat-
ically classify the type of processing items assigned to the measurement flow and parallelize the items
of the same classification.
Refer to the following for details on the processing items that are automatically parallelized.
Refer to Processing Items That Supports Automatic Parallelization on page 4-37.
It is possible to affect each of Operation mode when Parallel processing is ON. Please if needed, refer
to Refer to The effect of Parallel processing on the Operation mode on page 4-32.
4-4-2 Parallel Processing

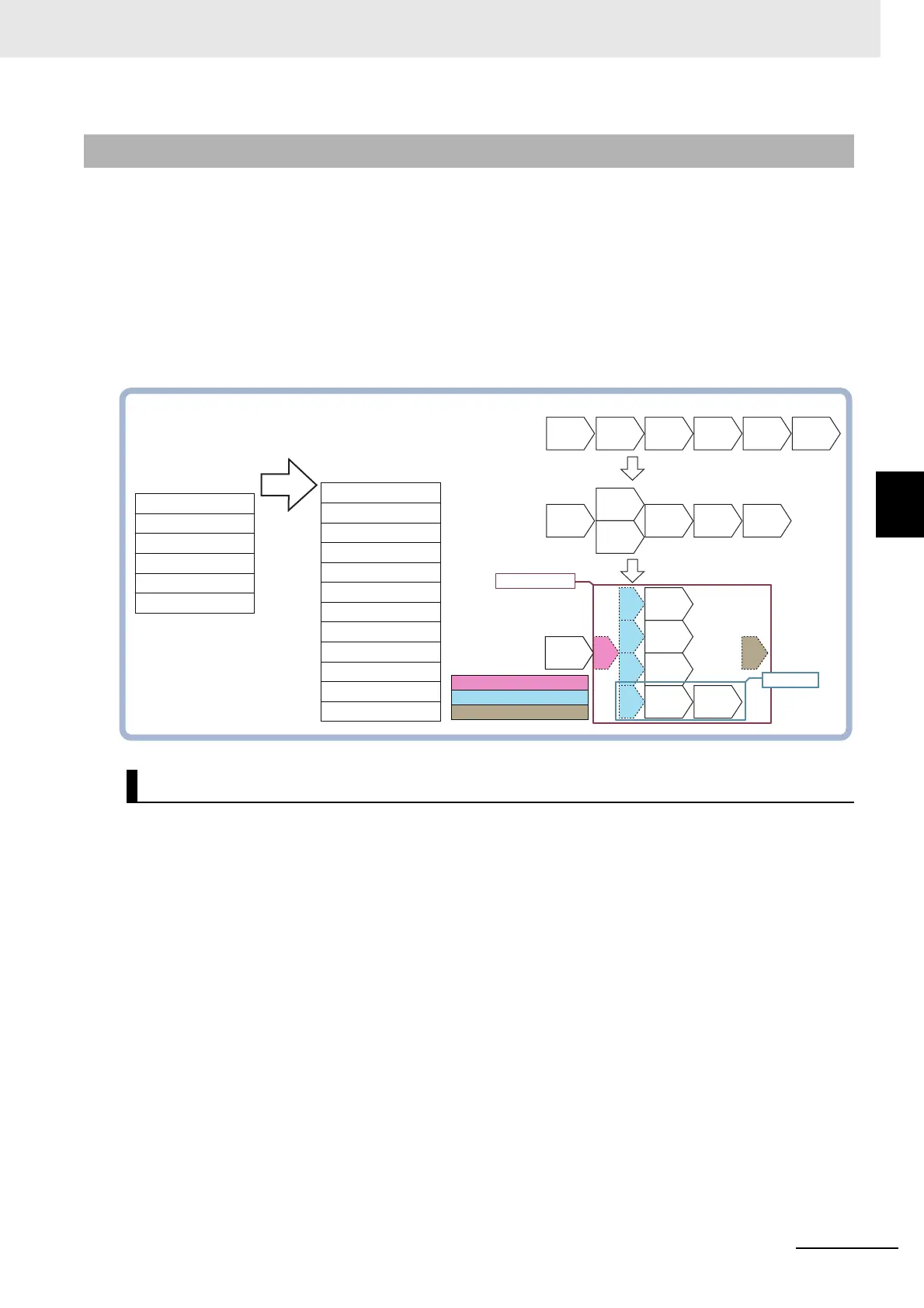

Parallel Processing Settings (Automatic Parallelization)
0. Camera Image Input
Flow before applying
the parallelization
(or immediately after
applying the automatic
parallelization)
After using
the Parallelize
Processing Items
After using the
Parallelize
Processing
Items
Parallelize block
Immediately
after
applying the
automatic
parallelization
Before
applying the
parallelization
1. Search
2. Search
3. Search
4.
Camera Switching
5. Search
1)Start of parallel processing
2)Parallelize Task
3)Parallelize End
0. Camera Image Input
1. Start of parallel processing
2. Parallelize Task
3. Search
4. Parallelize Task
5. Search
6. Parallelize Task
7. Search
8. Parallelize Task
9.
Camera Switching
10. Search
11. Parallelize End
Camera
Input
Camera
Input
Search
Search
Search
Search
Search
Camera
Switching
Search
Search
Search2)
2)
2)
2)
1) 3)
Search
Search Search Search
Camera
Input
Task block
Camera
Switching
Camera
Switching
