9 Saving/Loading Data
9 - 8
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)

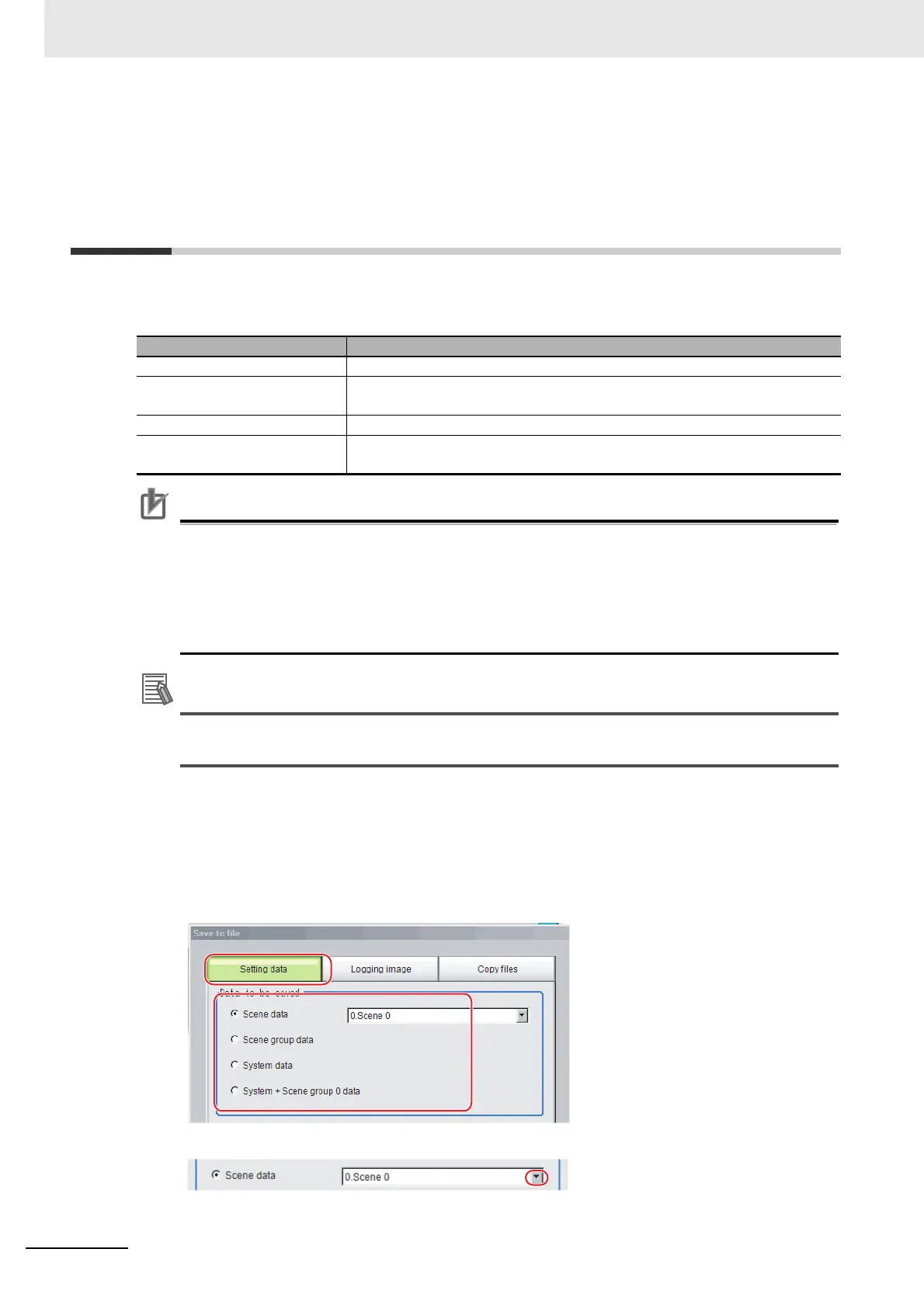

9-3 Saving Setting Data to the Controller
RAMDisk or an External Storage
Device
Setting data files are saved to the RAMDisk or to an external storage device. The following table lists
the data that can be saved.
Important
• Do not try to restart, turn OFF the power source, or remove the external storage during sav-
ing data. Data may be corrupted and will not be perform correctly next launching. In particu-
lar, when the target data of [Data save] is System +Scene group 0 as it is saved to the flash
memory of Sensor Controller simultaneously.
• If the software version to load is not older than the software version which is saved the set-
ting data, it possible not to be loaded the setting data file.
Additional Information
When [Save to file] is executed, the data to save is also saved in the Controller (except scene
group data 1 to 31).
1 To save to a USB memory device (or an SD memory card), insert the USB memory device (or
SD memory card) in the Controller.
2 In the Main Window, select [Save to file] from the [Function] menu.
The [Save to file] dialog box is displayed.
3 Click the [Setting data] button to select the data to save.
4 If you selected [Scene data], click the [] button to select the number of the scene to save.
Data Description
System data (*.ini) Indicates the shared setting data, i.e. [System] menu.
Scene data (*.scn) Indicates each setting data, i.e. unit setting value, Scene order, layout or size
of Image Pane.
Scene group data (*.sgp) Indicates data including 128 Scene.
System + Scene group 0 data
(*.bkd)
Indicates both system data and Scene group 0 data.
