8 Setting Windows
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
8-3 Arranging Windows [Layout Functions]
8
8-3-21 Message Box Display Window (MDI_MsgBox. dll)
Window part to display a message box from macro processing.
This function can not be used with the FHV series.

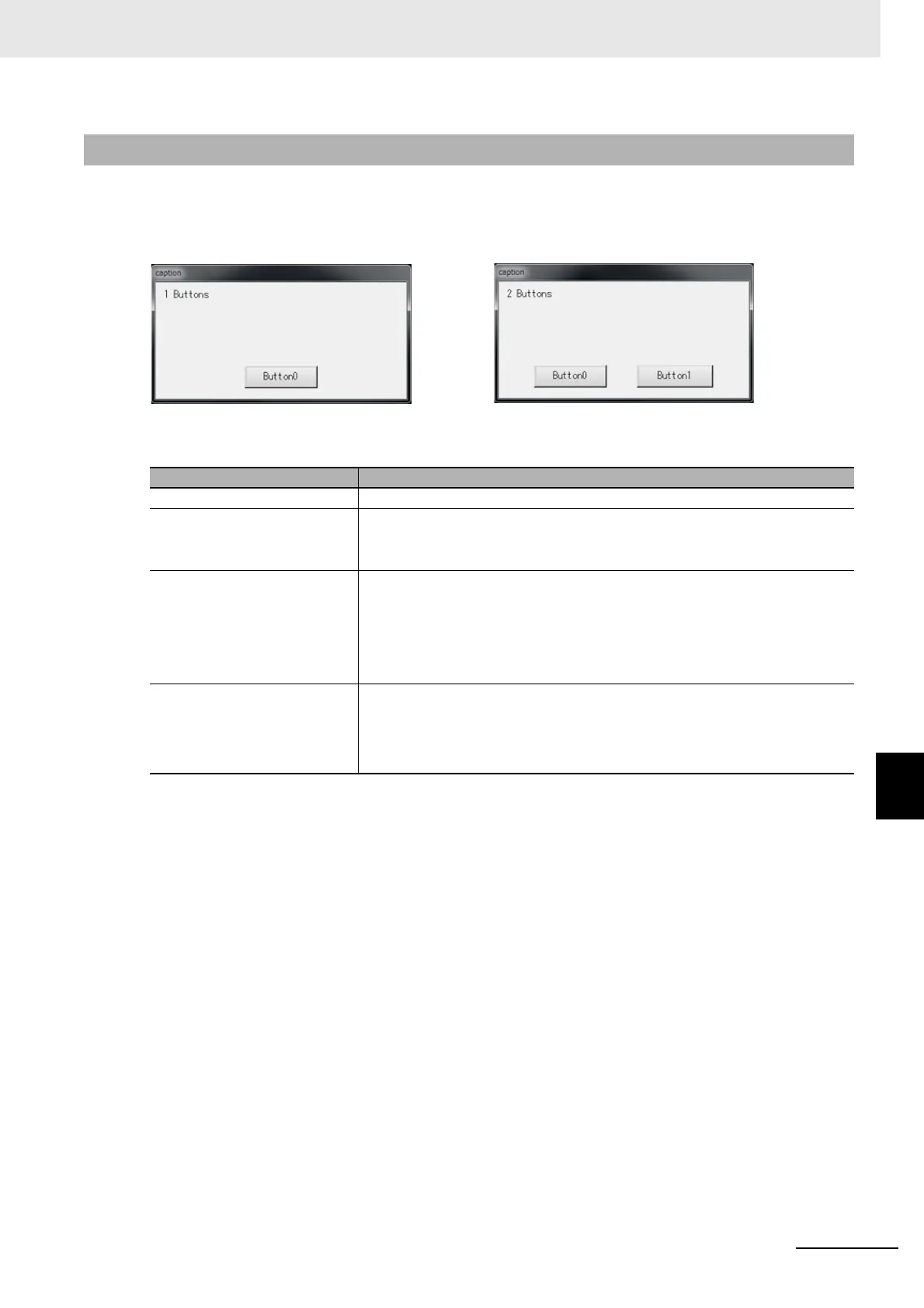

You can display two types - a 1 button message box and a 2 button message box.
This window part does not have display elements for the main screen.
There is no UI for setting. Specify by setting a value in global data.
The usage method is to specify an event number of 480 for the RaiseOptionEvent relationship, and
20000 for the parameter to display the message box.
Example)
SetGlobalData "MsgBoxCaptionText", "Title character string"
SetGlobalData "MsgBoxMessageText", "Message character string"
SetGlobalData "MsgBoxButtons", "OK
RaiseOptionEvent 480,20000
8-3-21 Message Box Display Window (MDI_MsgBox. dll)
Identifier name Description [Factory default]
MsgBoxCaptionText Set the window title character string.
MsgBoxMessageText Set the message character string.
If the message will be displayed over multiple lines, then insert LF (Chr$(10))
at the line break.
MsgBoxButtons Sets the character string to display on the button.
Up to a maximum of two buttons can be set by separating with a semicolon (;).
Example:
1 button: "OK"
2 buttons: "OK;Cancel"
MsgBoxResult Stores the number of the button pressed in the message box.
Example:
1st button pressed: 0 stored
2nd button pressed: 1 stored
