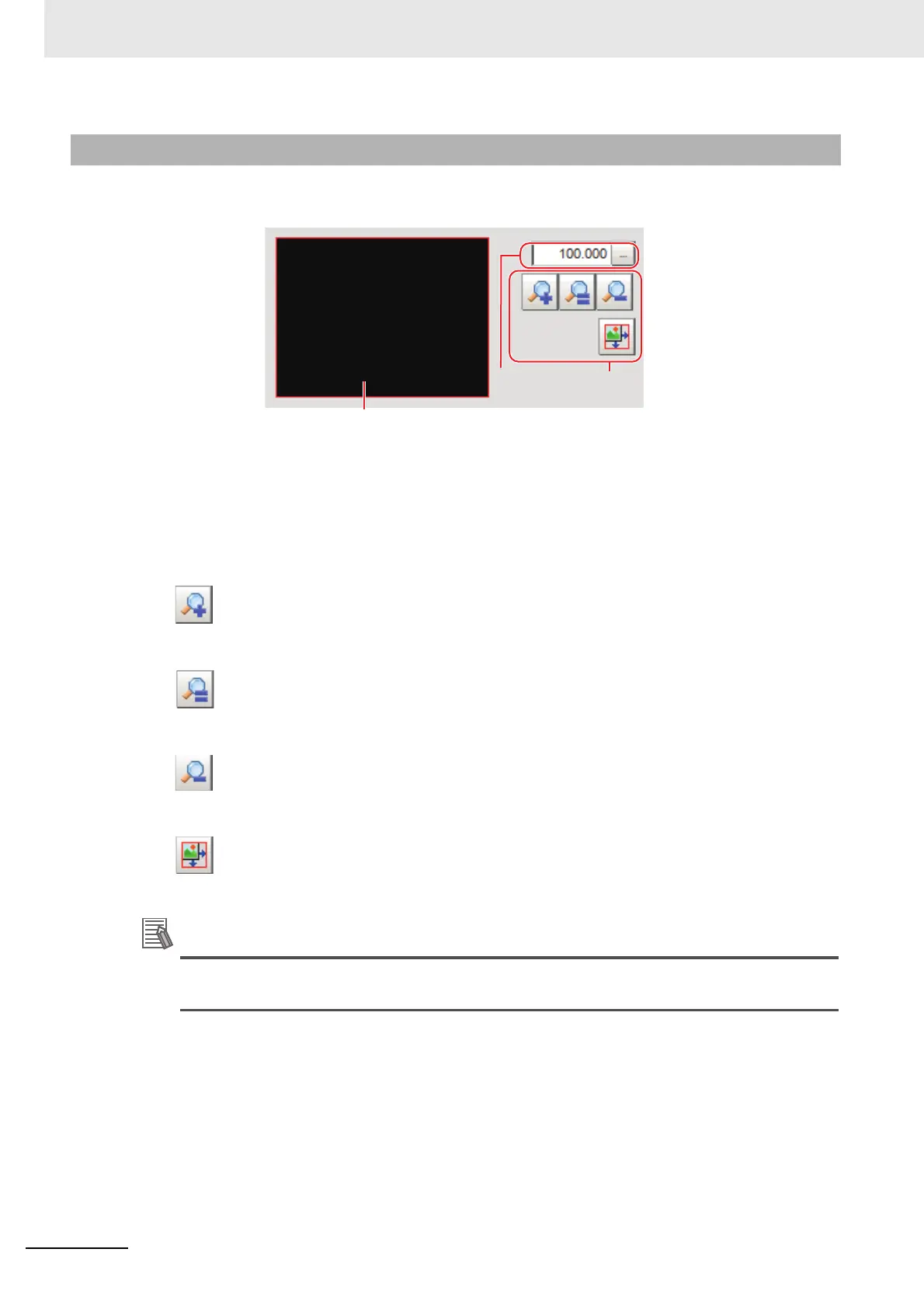

You can adjust the window scaling for the image display on the image display area of Properties Dialog
Box.
(a) Zoom browser
Indicates where the zoom display area is in the original image.
(b) Magnification factor
Input the magnification factor A factor of between 25% to 1600% can be indicated.
(c) Operation buttons
• Zoom-in button
Enlarges the selected area to twice its size.
• Original size button
Displays the selected area in the original size.
• Zoom-out button
Reduces the selected area by half.
• Full-screen button
Enlarges the zoom browser to the entire screen and returns it to its original size.
Additional Information
You can use the Zoom function using your mouse wheel on the image display area in FH
series/FZ5-800 series/FZ5-1100 series/FZ5-1200 series.
3-2-5 Using the Zoom Function
cb
a
